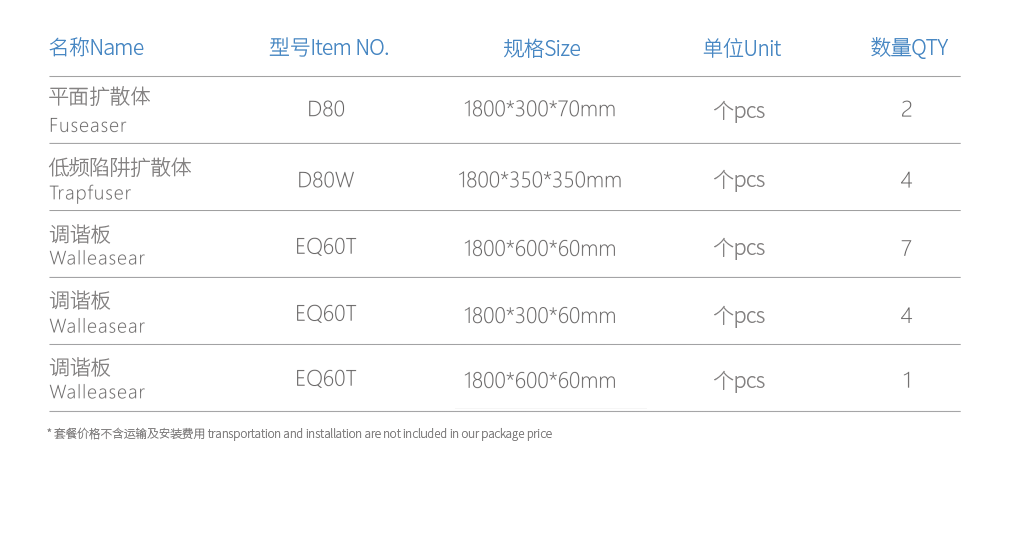

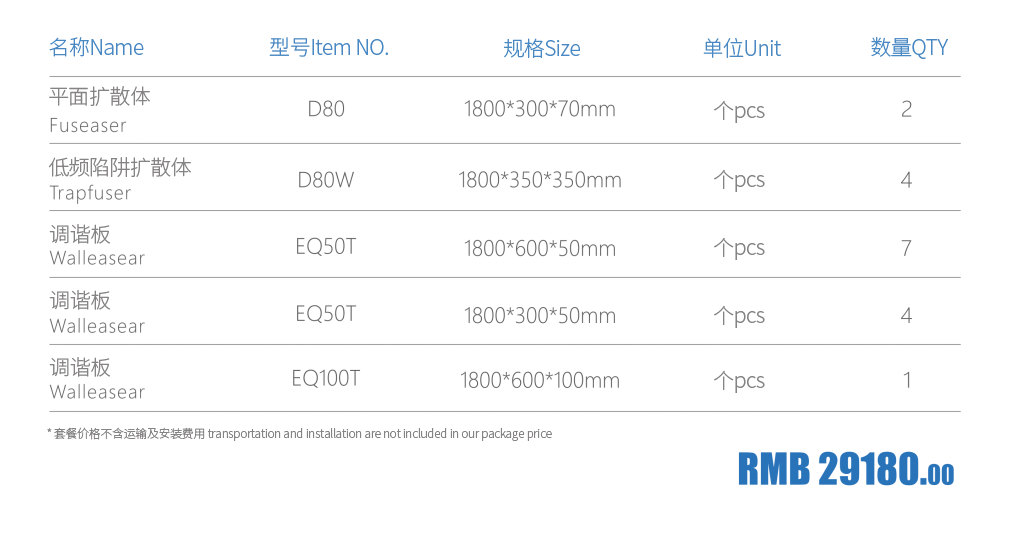

套餐清单
Package Lists

D80 平面扩散体 Fuseaser

基材:橡胶实木
饰面:实木面/素色烤漆 E0环保PU饰面漆
特点:D80有着显著的扩散效果,不提升混响时间的作用下,有 效改善小空间内声干涩。有效提高环境音质饱满度和曲线 平直、丰富度及立体感。
规格:H1800 * W300 * D70mm ≤15.1Kg/个

Base material: rubber solid wood
Finish: E0 standard environmental friendly PU finish paint
Main features: D80 has significant diffusion effect. On condition of not increasing the reverberation time, it can deal with the problem of sound dryness in small spaces effectively and improve the fullness, articulation and sense of stereophony.
Size: H1800 * W300 * D70mm ≤15.1Kg/pcs

D80W 低频陷阱扩散体 Trapfuser

基材:橡胶实木
饰面:E0环保PU饰面漆
特点:D80W深层次理解角位驻波解决方案,融合了低频吸收与扩散技术与一身,不仅解决了角位驻波困扰,有利于这一特殊的位置,为小空间增强至少3dB声能量。
规格:H1800 * W350 * D350mm ≤31.5kg/个

Base material: rubber solid wood
Finish: E0 standard environmental friendly PU finish paint
Main features: D80W is an in-depth solution to the problem of standing waves in corners. As a combination of low frequency absorption and diffusion technologies, it not only solves the problem of sound confusion in corners, but also makes use of the corners to enhance the sound energy by at least 3dB.
Size: H1800 * W350 * D350mm ≤31.5kg/pcs

EQ100T/50T 调谐板 Walleasear

基材:纯天然环保纤维复合声学棉 / 专利型材防氧化框体
饰面:饰面织物选择声学特性优良的混合布料
特点:密闭式框体包裹三层非对等密度复合基材,成型准封闭式宽频吸收声学空腔
环保:零排放符合国际E0环保标准
规格:H1800 * W600/300 * D100/50mm;EQ100≤10Kg/m2 EQ50T≤2.8kg/m2
安装:防共震铝质易安装件

Base Material: Purely natural green fiber acoustic wool/Patented anti-oxidized frame
Finish: Well performed acoustic cloth
Acoustic structure: Three layers base material in different density are wrapped in the air tight frame, making it into a acoustic cavity for absorbing sound in broadband frequency
Eco-Friendly: Zero Formaldehyde emission; Up to E0 standard
Size: H1800 * W600/300 * D100/50mm;EQ100 ≤10Kg/m2 EQ50T ≤2.8kg/m2
Installation: Anti-resonance aluminum fixing system

适用于空间
Applicable to 12 – 24m²

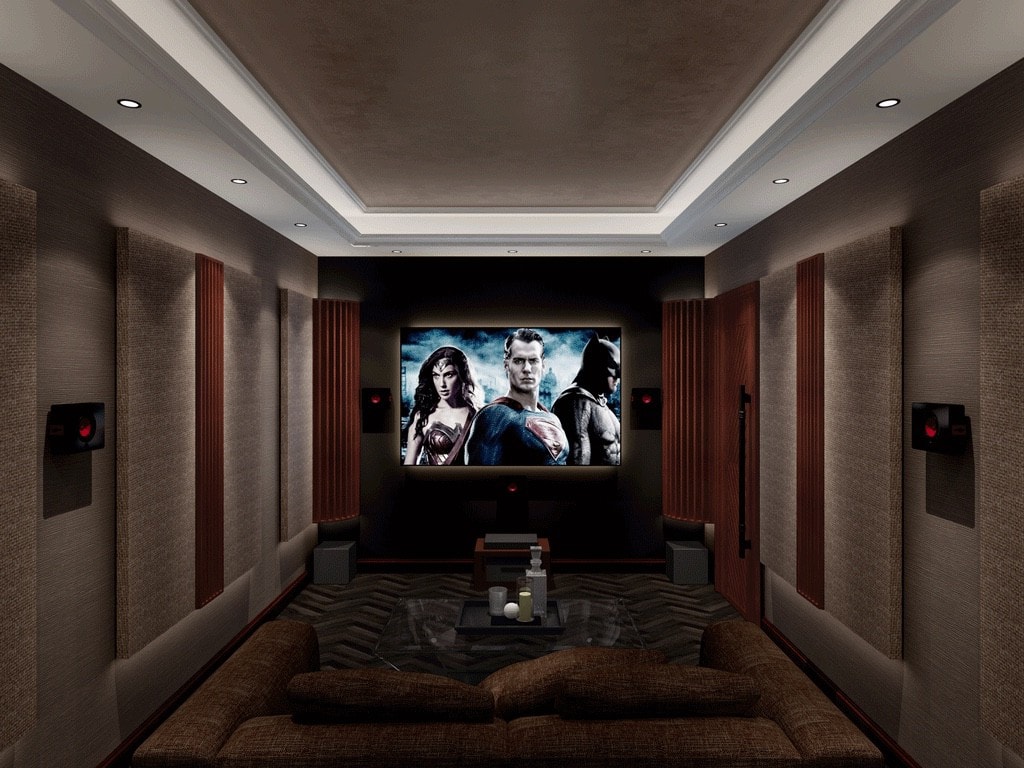

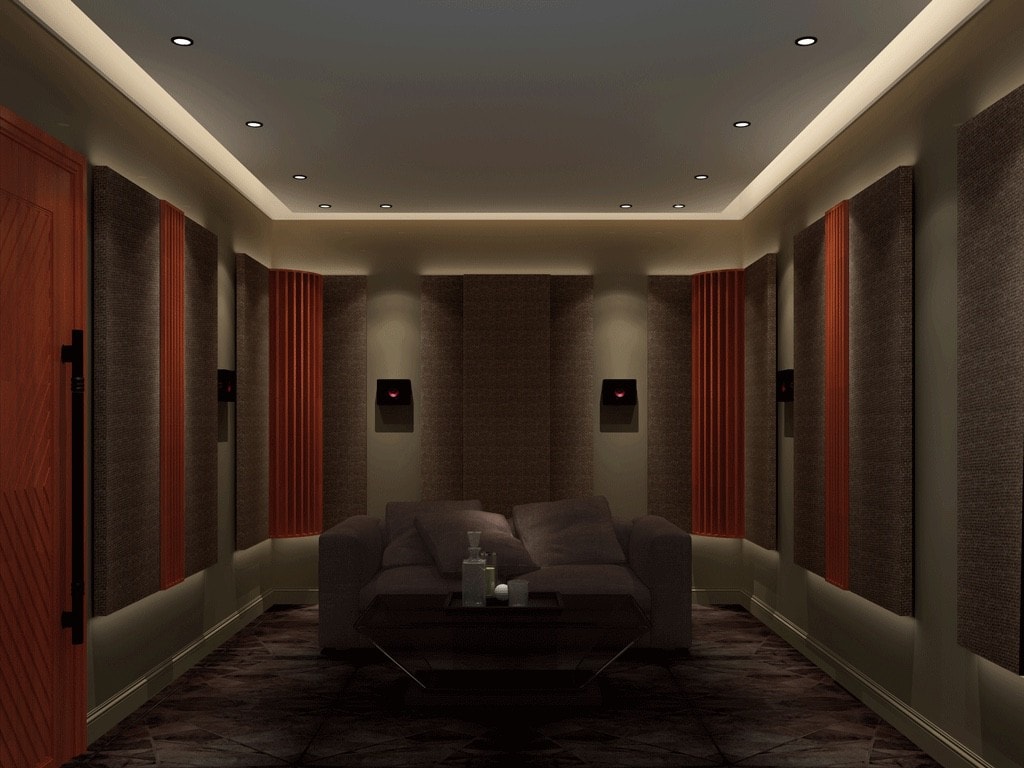

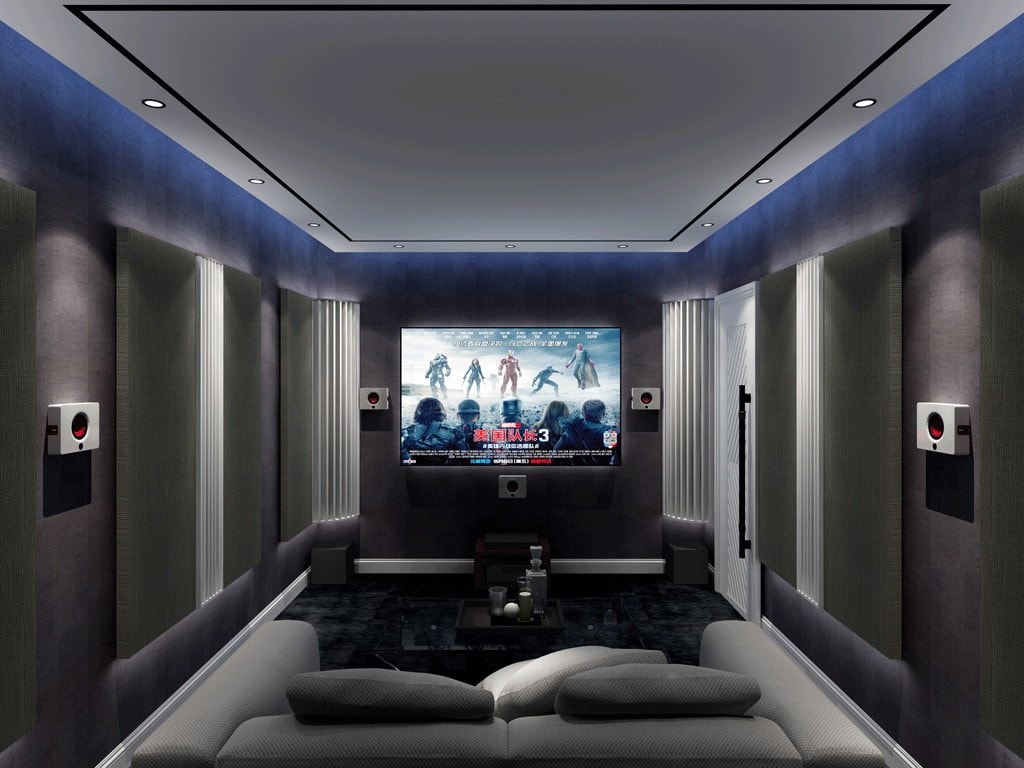

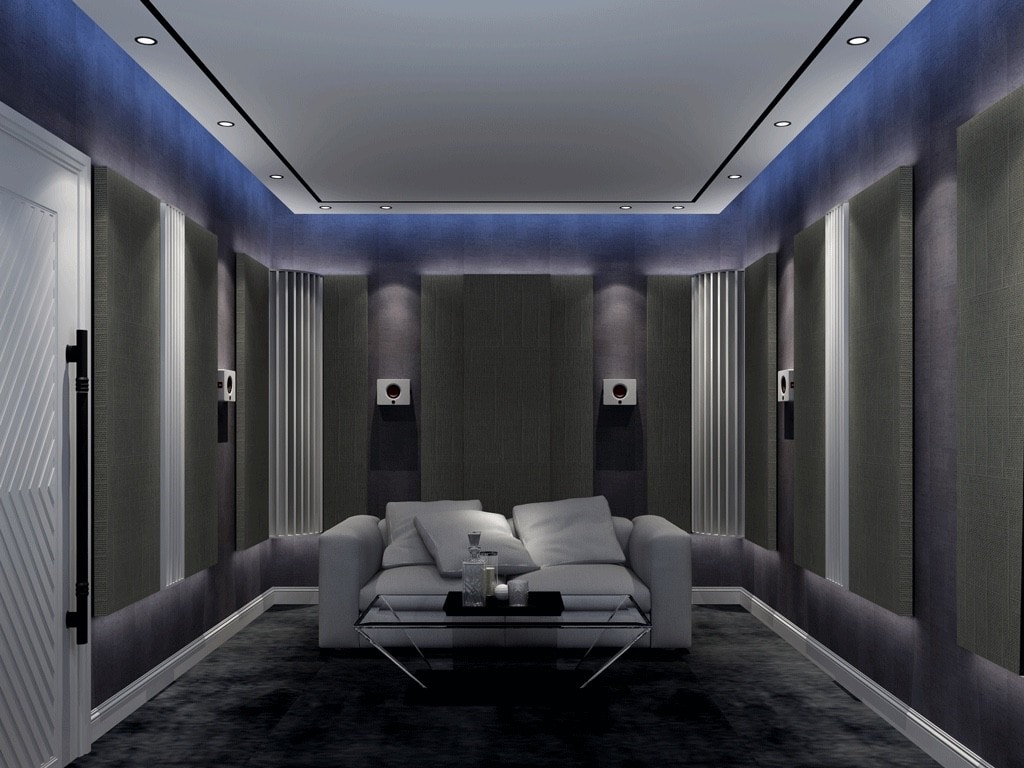

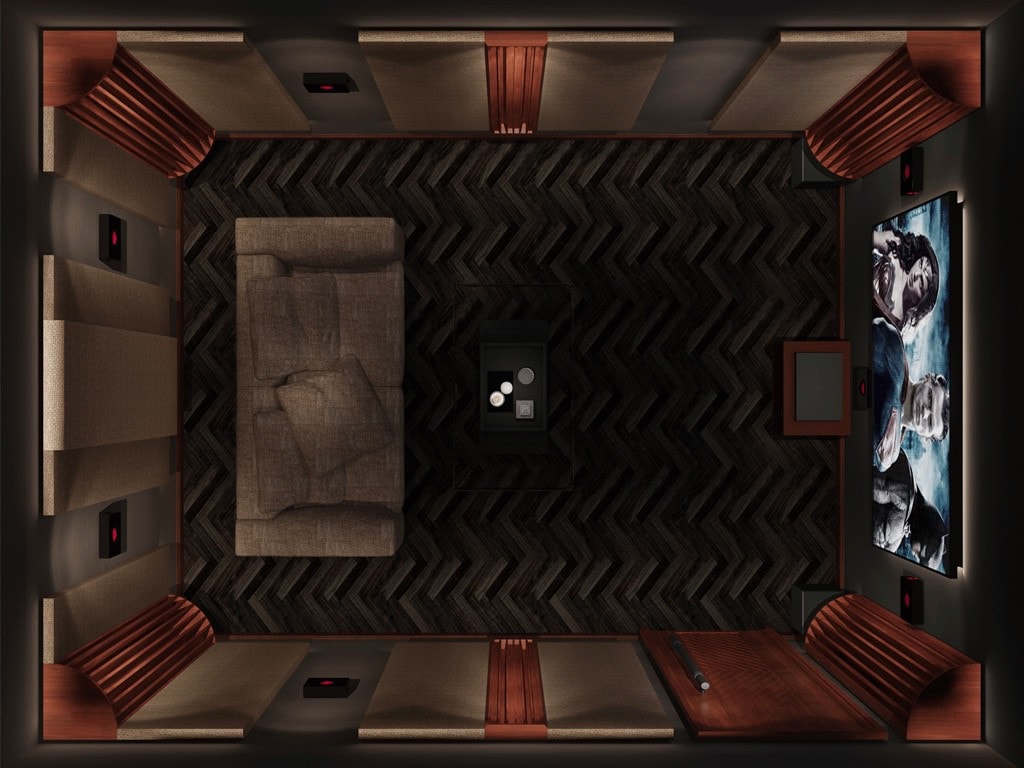

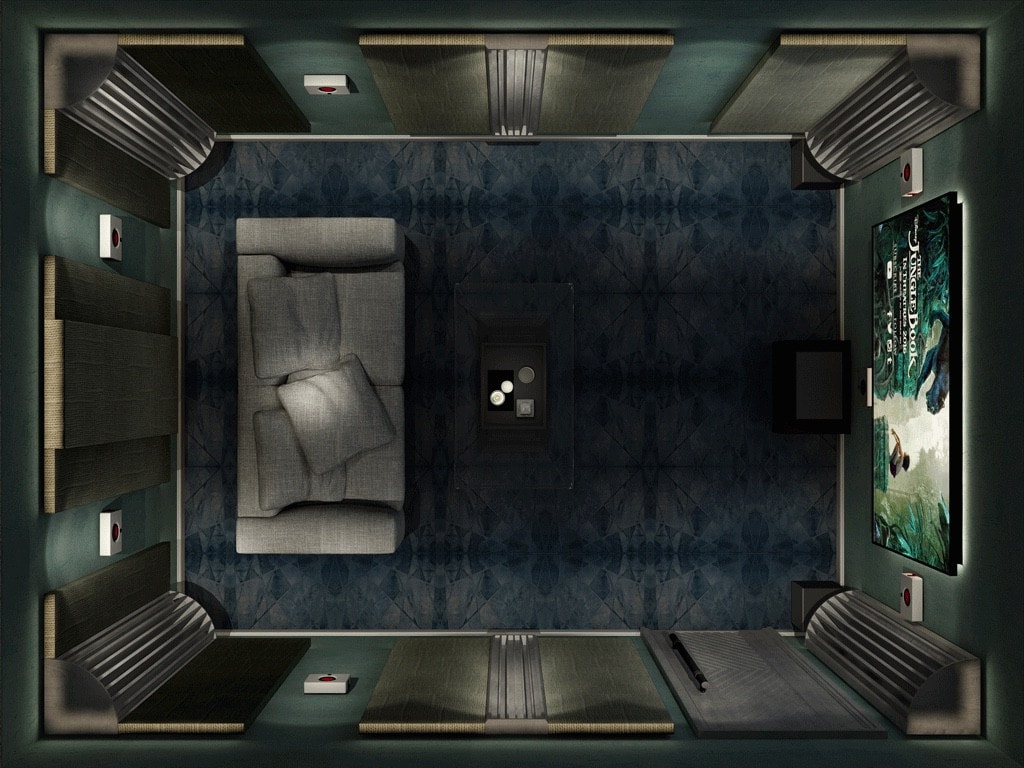

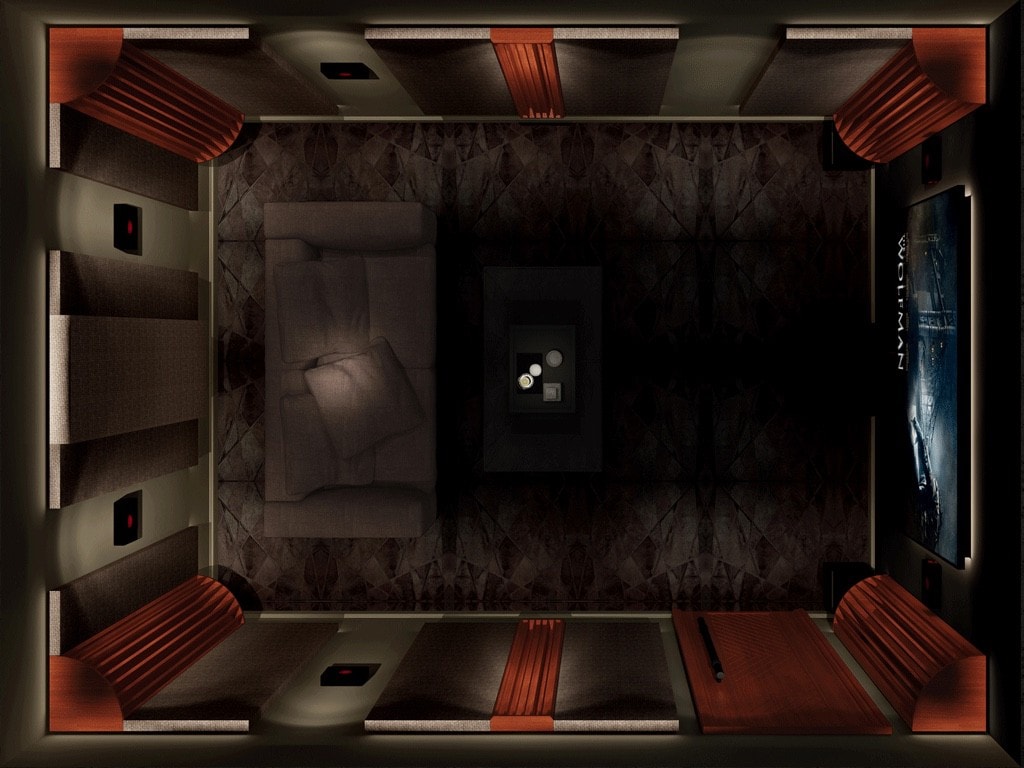

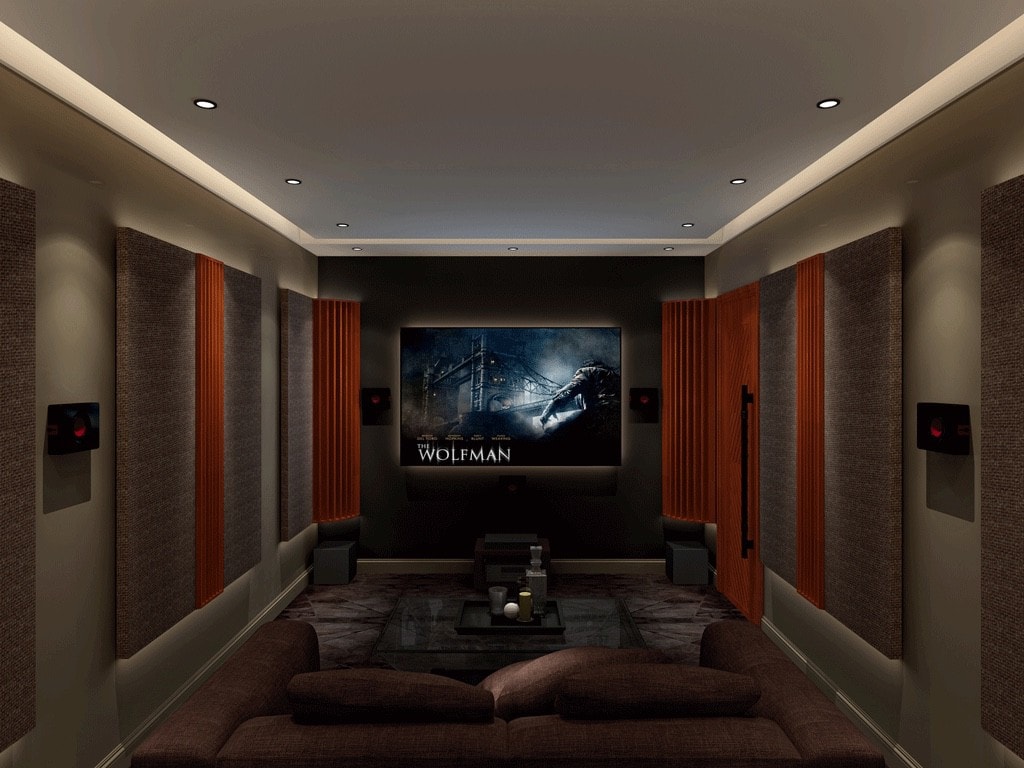

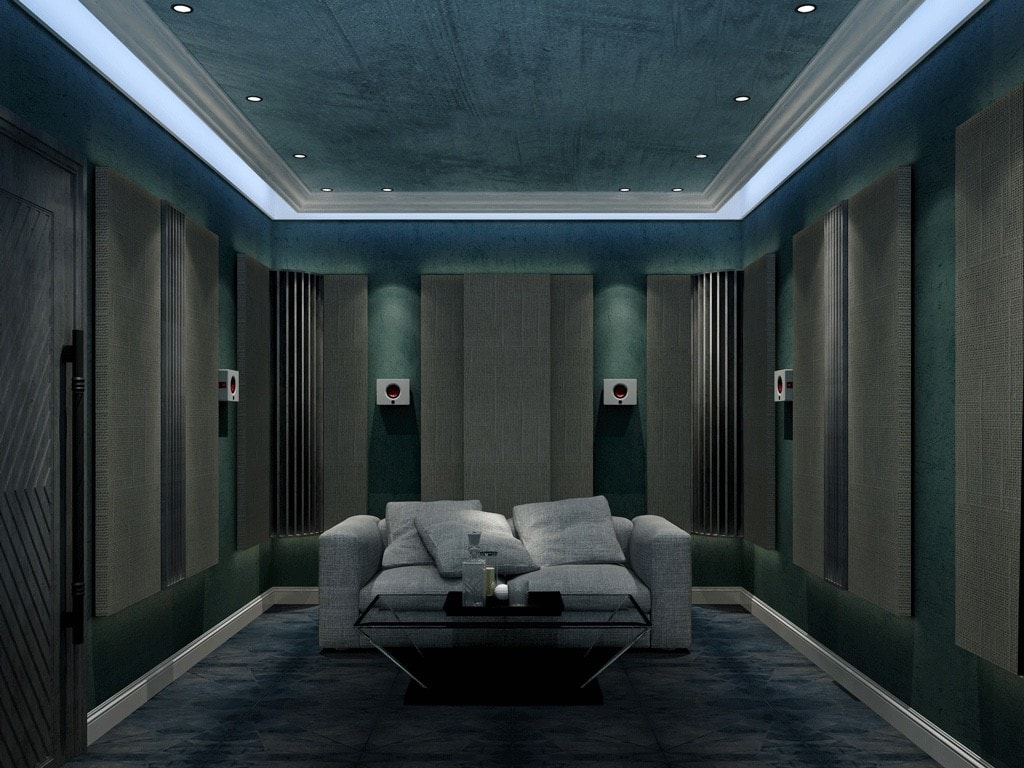

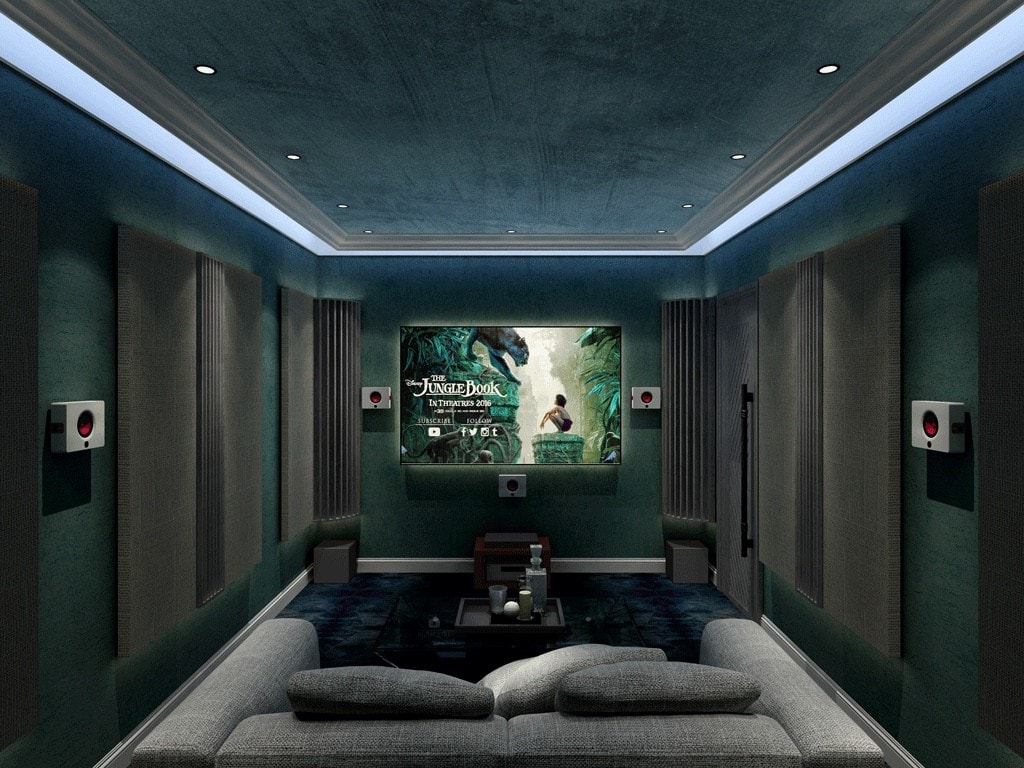

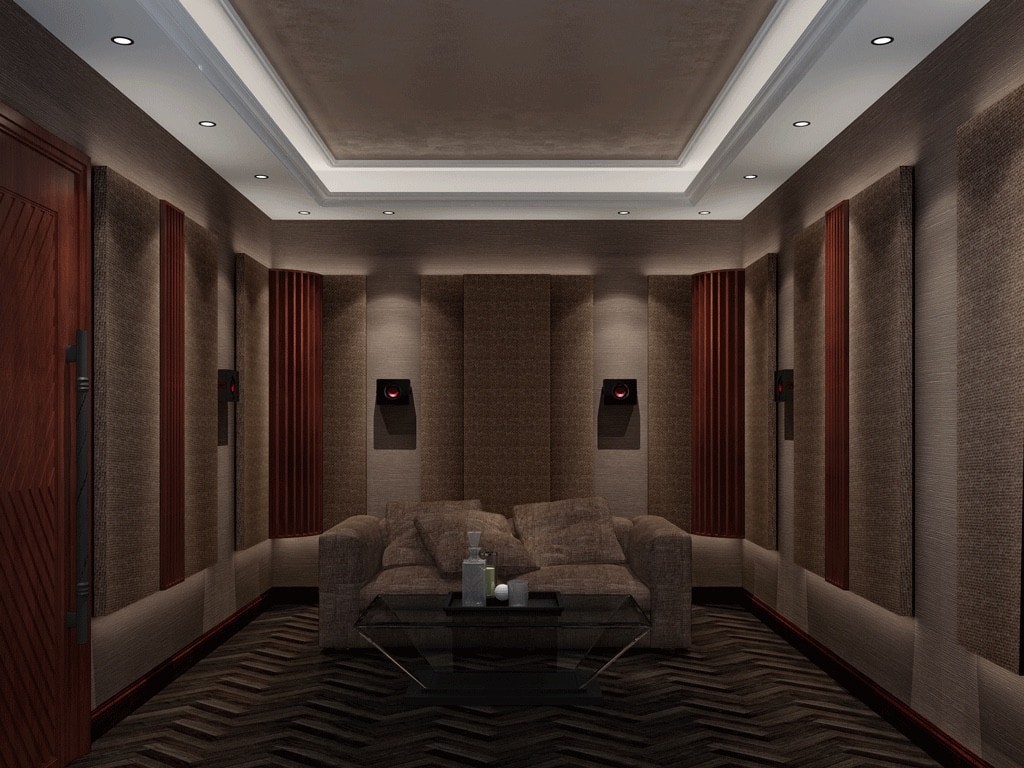

商品情景
Commodity Scene

No: 03070110
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:12 – 24m²

N0: 03070108
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:12 – 24m²

No: 03070113
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:12 – 24m²

No: 03070112
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:12 – 24m²

方案参数
Specification

适用空间:D4000~6000 * W2800~4000 * H2600~2800 mm
应用功能:私人影音 / 影吧
音响系统:7.2.4通道
视频系统:80″ 激光投影 / 65″ 液晶电视
空间条件:基础装修

Suitable room dimension:
D4000~6000 * W2800~4000 * H 2600~2800 mm
Application: Home theatre / Commercial small cinema
Sound system: 7.2.4 channel
Video system: 80″ projector / 65″ LCD TV
Room requirement: Basic decoration

混响时间曲线分析图

郑 重 敬 告

本方案所涉产品及图片专利著作权归属广州声博士声学技术有限公司所有
未经授权篡改内容,擅自挪用、假冒仿制将追究法律责任
