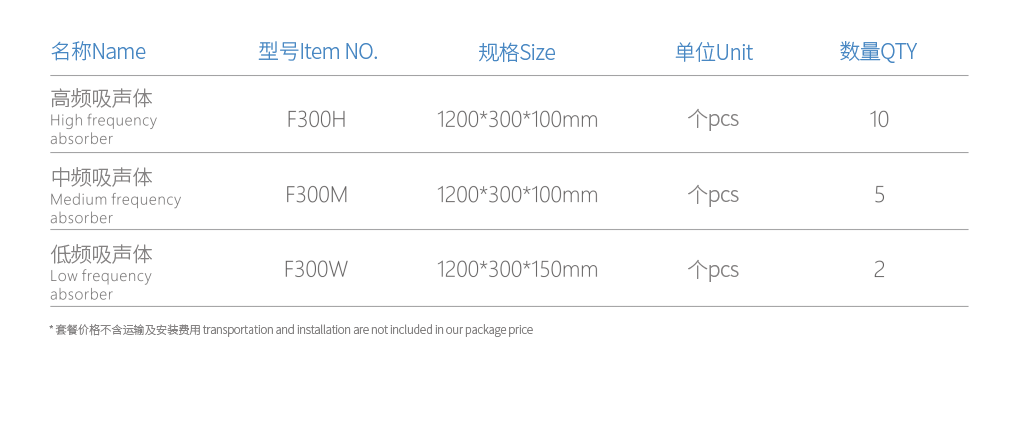

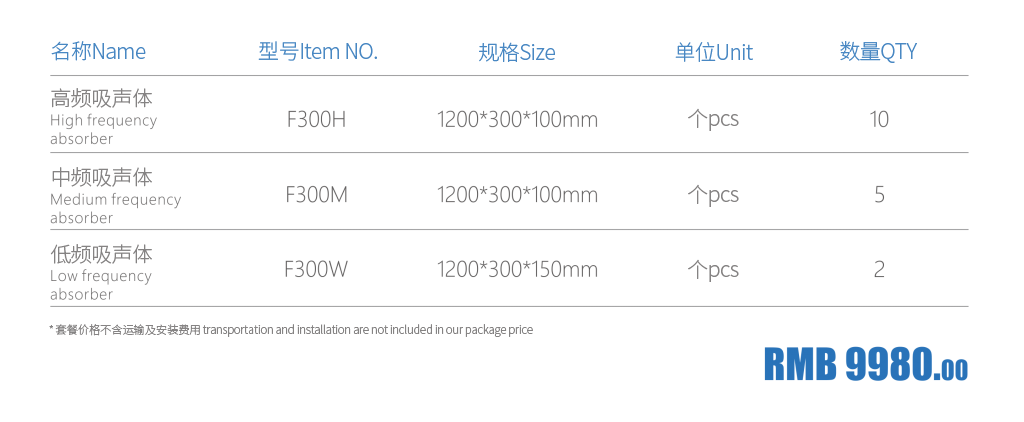

套餐清单
Package Lists

F300H 高频吸声体 High frequency absorber

基材:Polymer 高分子聚合物 / Polyether polyol 聚醚多元醇阻燃声学棉
饰面:E0环保水性颗粒面漆
特点:高密度Polyether polyol声学棉显著提升个体吸声量,QRD序列排布结构收获宽频吸收效果,有效解决空间中高频余量混响和平衡反射。
规格:H1200 * W300 * D100mm ≤1.3Kg/个

Base Material: Polymer/Polyether polyol fire retardant acoustic foam
Finish: E0 ECO water based paint
Features: High-density Polyether polyol acoustic foam improves sound that the model absorbs; QRD array achieves broad band frequency absorption, solving the problem arise from too much high frequency and balanced reflection
Size: H1200 * W300 * D100mm≤1.3kg/pcs

F300M 中频吸声体 Medium frequency absorber

基材:Polymer 高分子聚合物 / Polyether polyol 聚醚多元醇阻燃声学棉
饰面:E0环保水性颗粒面漆
特点:Polymer高分子聚合物浇注成型半密闭空腔结构,导流口配备U型Polyether polyol声学棉成功掌控流阻指数,形成有效应对300-800Hz的定量捕捉器。
规格:H1200 * W300 * D100mm ≤1.6Kg/个

Base Material: Polymer/Polyether polyol fire retardant acoustic foam
Finish: E0 ECO water based paint
Features: The semi closed cavity structure which formed by pouring polymer material, and the U type Polyether polyol acoustic foam controls Flow resistance index, form a capture to deal with 300-800Hz
Size: H1200 * W300 * D100mm≤1.6kg/pcs

F300W 低频吸声体 Low frequency absorber

基材:Polymer 高分子聚合物 / Polyether polyol 聚醚多元醇阻燃声学棉
饰面:E0环保水性颗粒面漆
特点:高密度Polyether polyol声学棉显著提升个体吸声量,QRD序列排布结合非对等后空腔结构获得定量中低频吸收效果,组合产品使用轻松成就曲线平直声环境。
规格:H1200 * W300 * D150mm ≤1.6Kg/个

Base Material: Polymer/Polyether polyol fire retardant acoustic foam
Finish: E0 ECO water based paint
Features: High-density Polyether polyol acoustic foam improves the sound that the model absorbs; QRD array and in-coordinated back cavity structure achieve certain low-frequency absorption. A balanced acoustic environment will be obtained via suitable products combination.
Size: H1200 * W300 * D150mm≤1.6kg/pcs

适用于空间
Applicable to 12 – 24m²

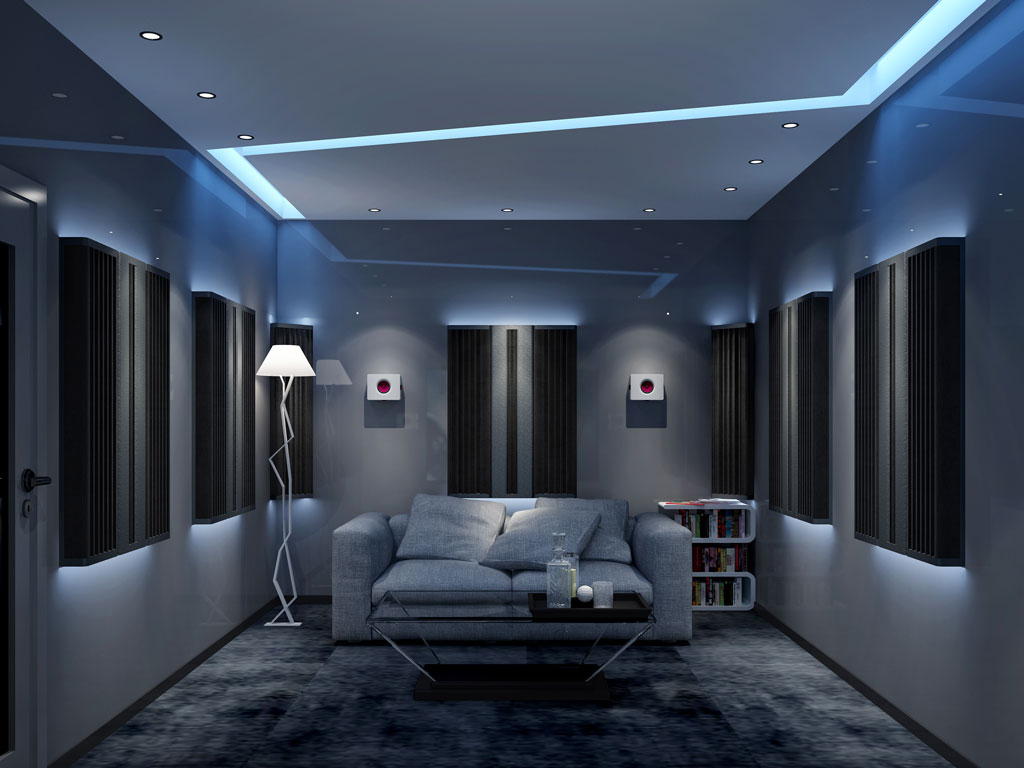

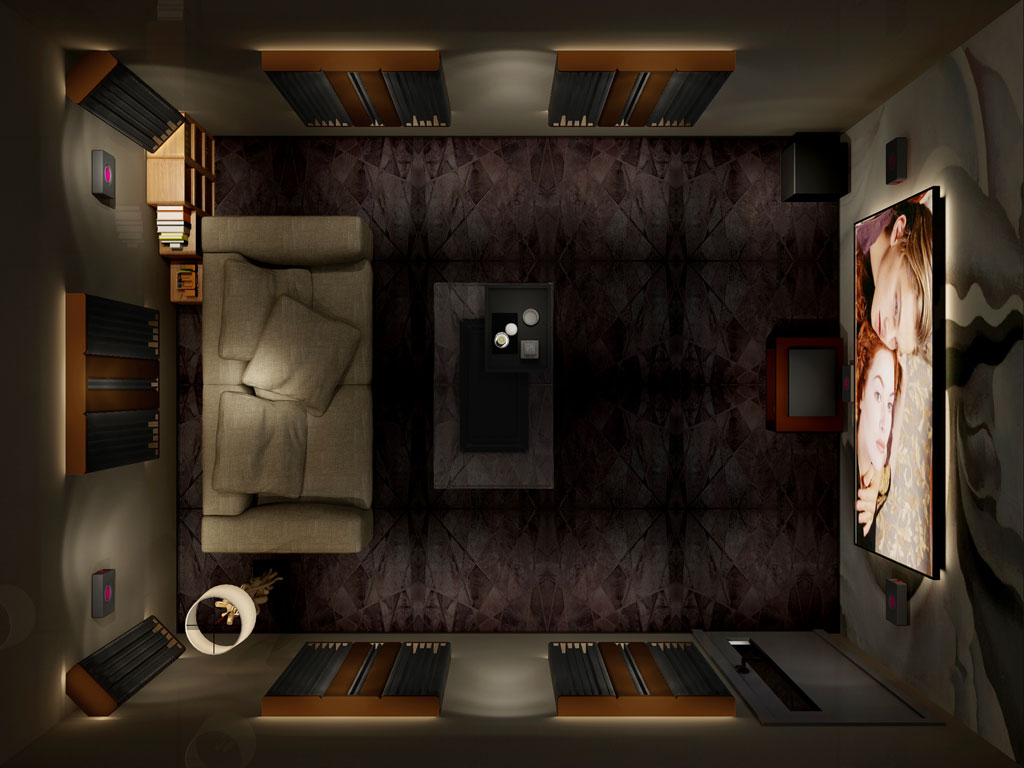

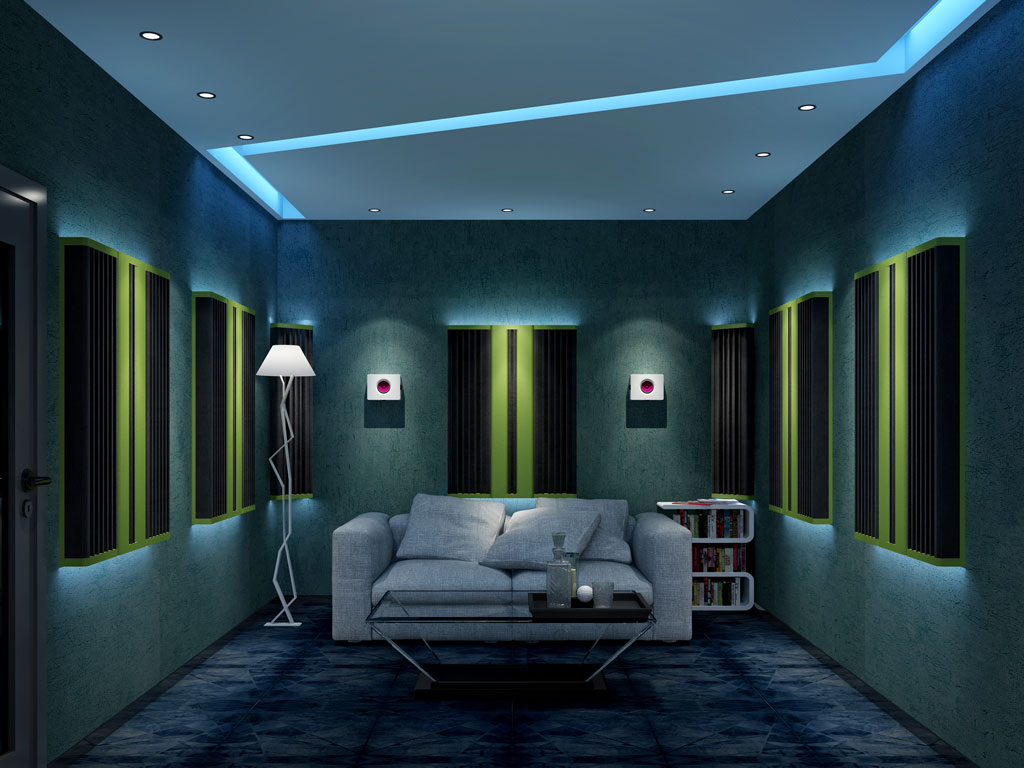

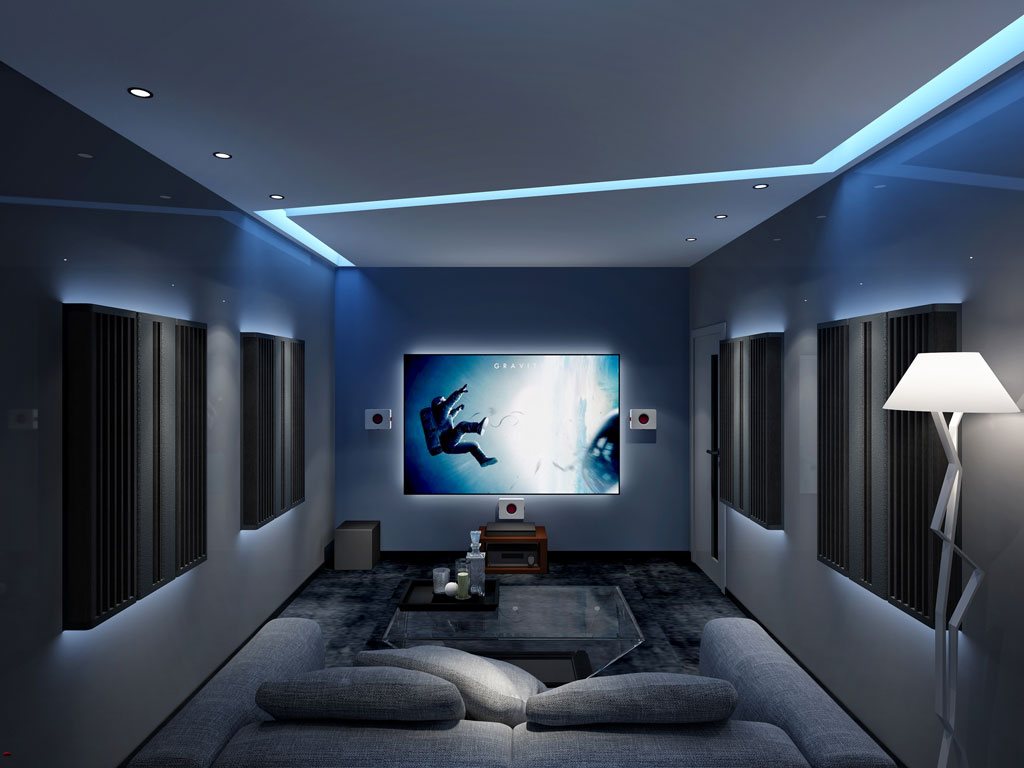

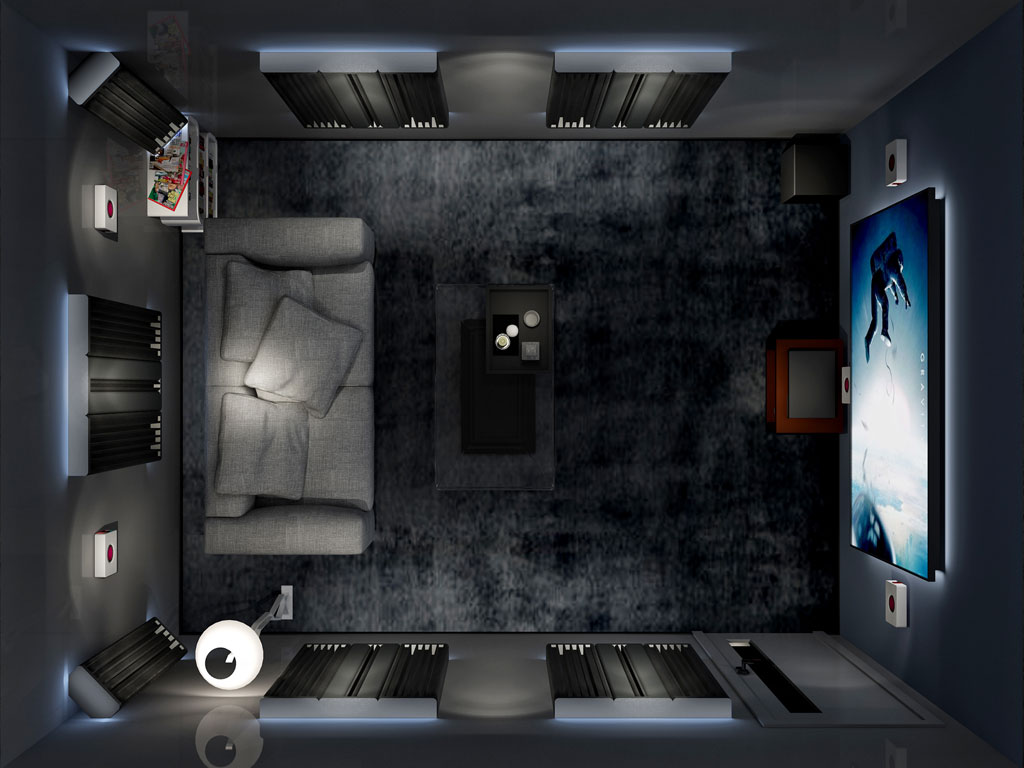

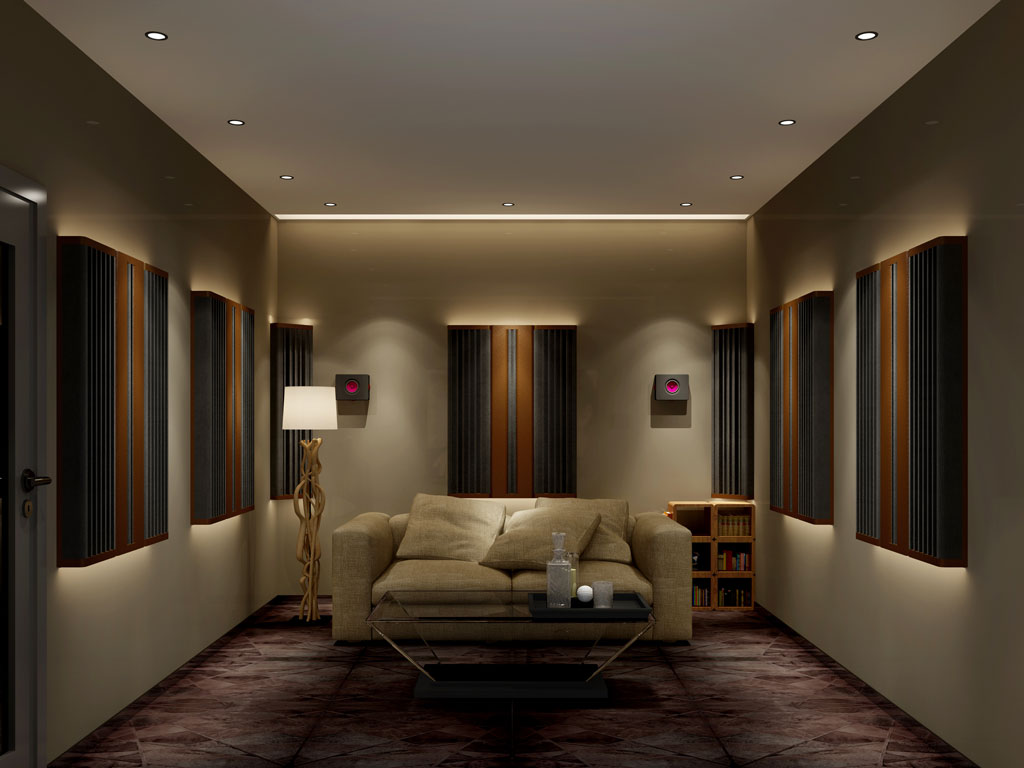

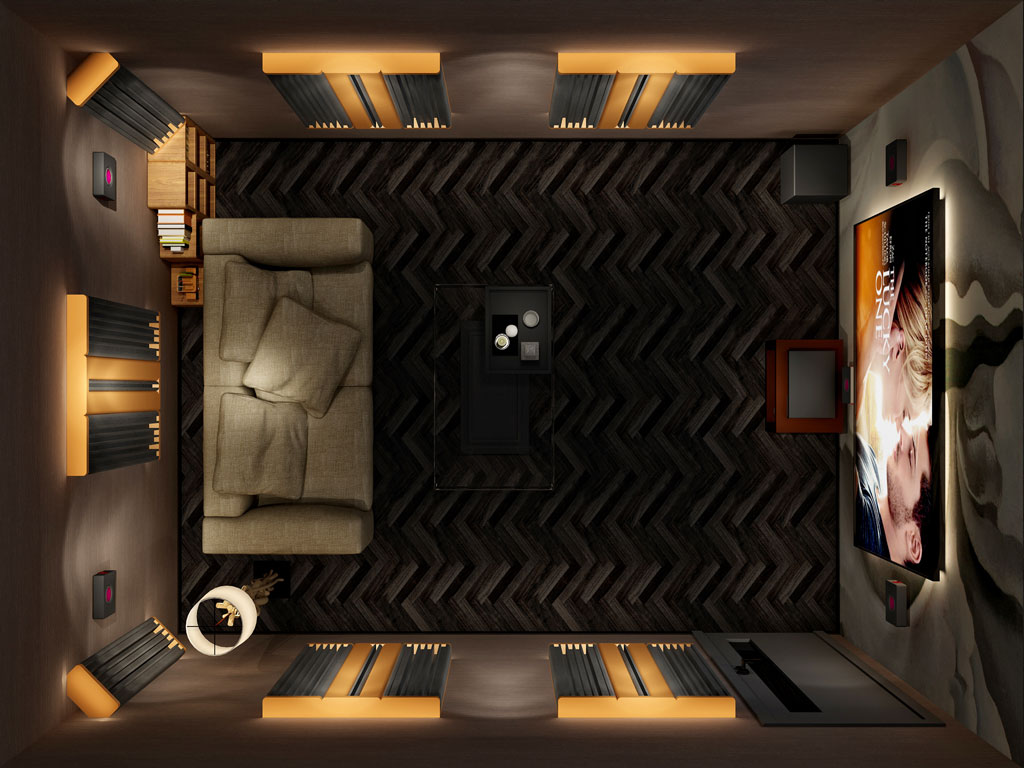

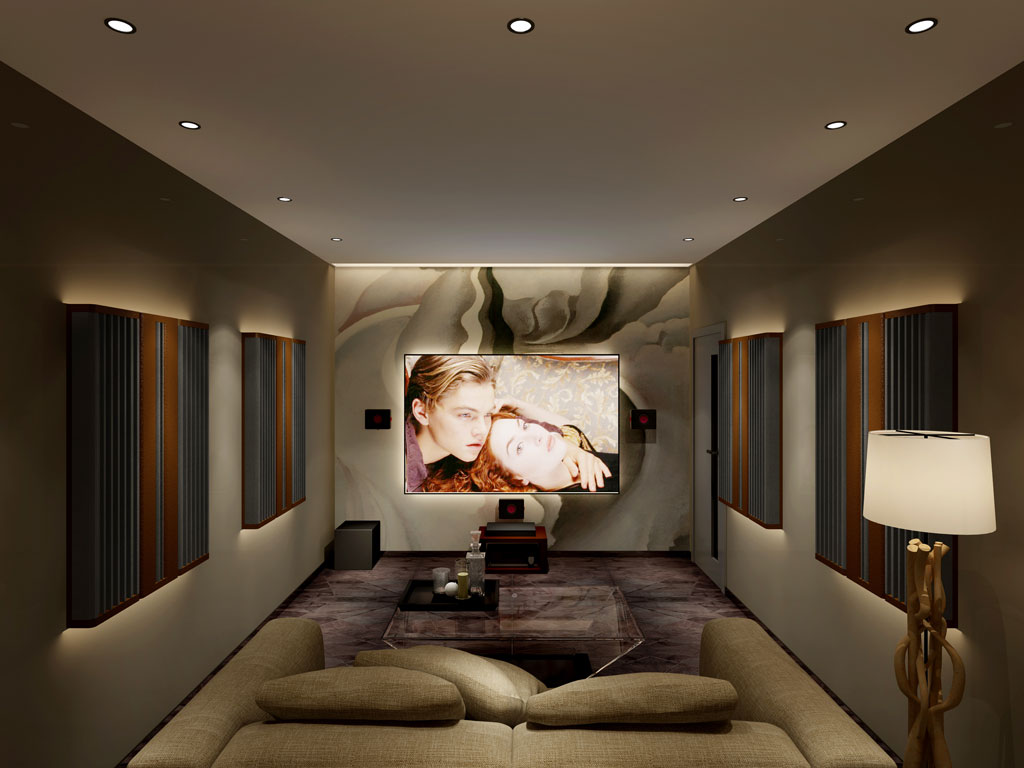

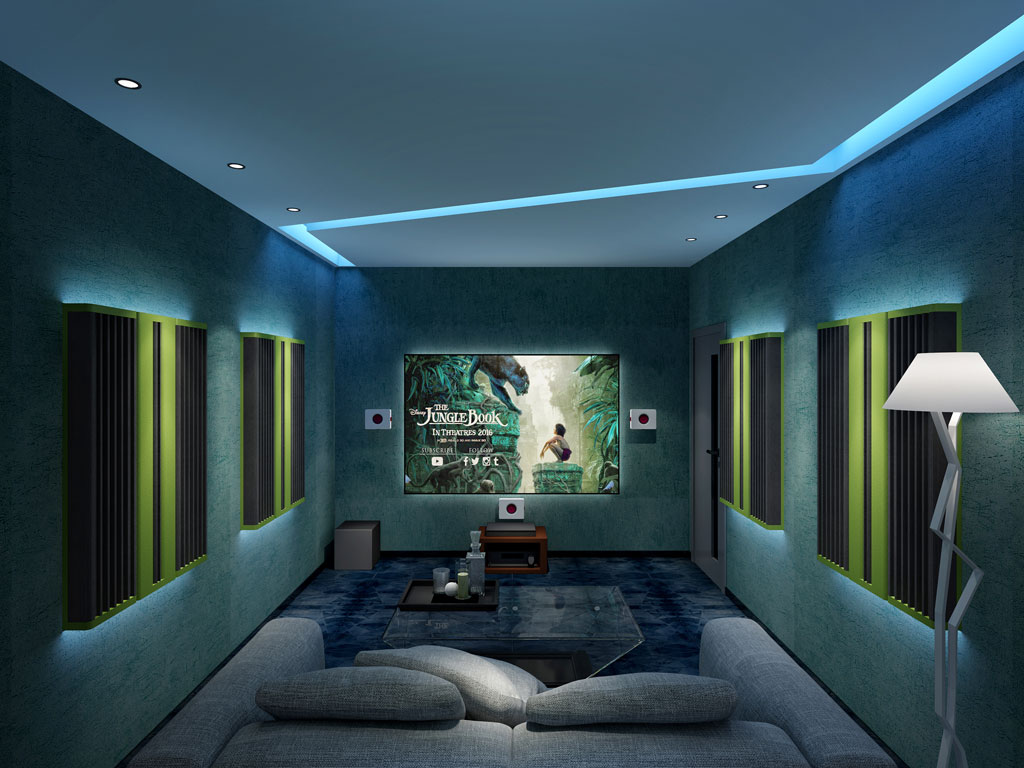

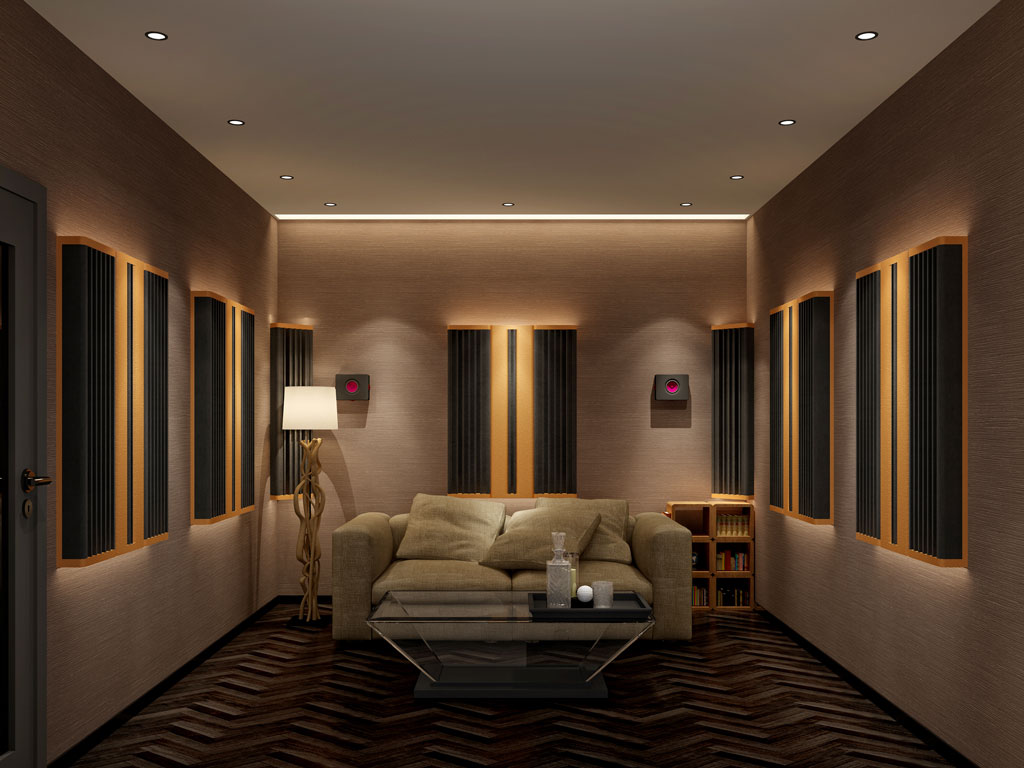

商品情景
Commodity Scene

No: 03040102
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:12 – 24m²

No: 03040108
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:12 – 24m²

No: 03040103
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:12 – 24m²

No: 03040106
示意空间:长4500 x 宽3300 x 高2700mm
适用范围:12 – 24m²

方案参数
Specification

适用空间:
D4000~6000 * W2800~4000 * H 2600~2800 mm
应用功能:私人影音 / 影吧
音响系统:2.1 / 5.1 / 7.2.4通道
视频系统:80″ 激光投影 / 65″ 液晶电视
空间条件:基础装修

Application of space:
D4000 ~ 6000 * W2800 ~ 4000 * H2700mm
Application features: Private audio / video bar
Sound system: 2.1 / 5.1 / 7.2.4 channel
Video System: 80 “laser projector / 65” LCD TV
Space requirements: basic decoration

混响时间曲线分析图

郑 重 敬 告

本方案所涉产品及图片专利著作权归属广州声博士声学技术有限公司所有
未经授权篡改内容,擅自挪用、假冒仿制将追究法律责任
