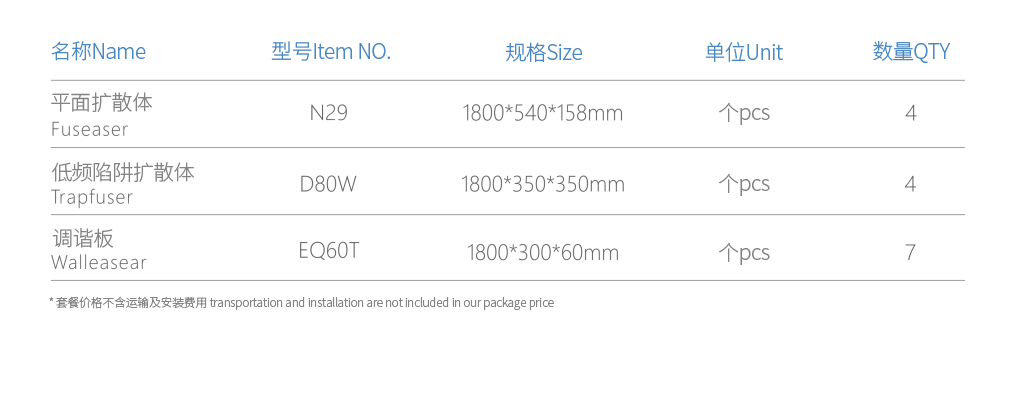

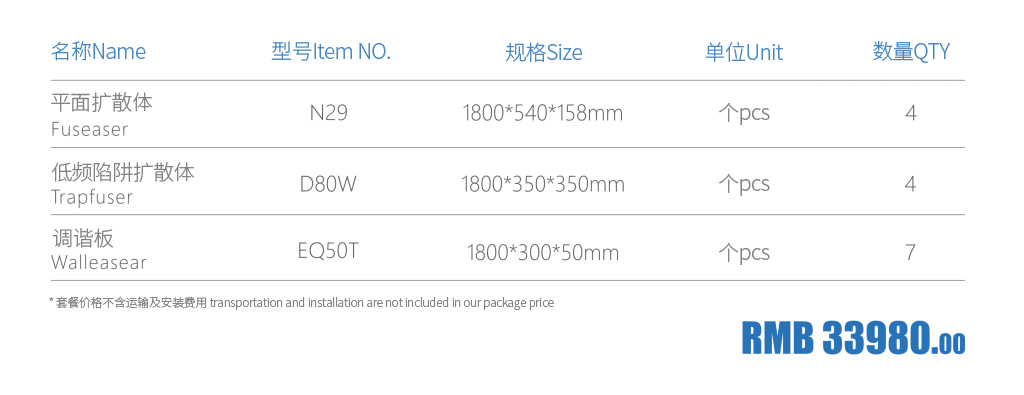

套餐清单
Package Lists

N29 平面扩散体 Fuseaser

基材:橡胶实木
饰面:E0环保PU饰面漆
特点:N29二次余数扩散体采用橡胶硬木制作,密度高达0.71(t/m)不仅材质机能稳定,有效满足宽幅N29低频设计基材指标,宽频QRD扩散良好还原声音空间感和提 升厅堂音质饱满度、清晰度及立体感。
规格:H1800 * W540 * D158mm ≤62.2Kg/个

Base material: rubber solid wood
Finish: E0 standard environmental friendly PU finish paint
Features: QRD diffuser N29 is made of solid rubber wood with a density of 0.71(t/m),which functions both stable satisfy technical requirements for special design aims at the broadband low frequency. A QRD for broad band frequency recreates sense of space and better the sound fullness, clearness and stereoscopic sensation.
Size:H1800 * W540 * D158mm ≤62.2Kg/pcs

D80W 低频陷阱扩散体 Trapfuser

基材:橡胶实木
饰面:E0环保PU饰面漆
特点:D80W深层次理解角位驻波解决方案,融合了低频吸收与扩散技术与一身,不仅解决了角位驻波困扰,有利于这一特殊的位置,为小空间增强至少3dB声能量。
规格:H1800 * W350 * D350mm ≤31.5kg/个

Base material: rubber solid wood
Finish: E0 standard environmental friendly PU finish paint
Main features: D80W is an in-depth solution to the problem of standing waves in corners. As a combination of low frequency absorption and diffusion technologies, it not only solves the problem of sound confusion in corners, but also makes use of the corners to enhance the sound energy by at least 3dB.
Size: H1800 * W350 * D350mm ≤31.5kg/pcs

EQ50T 调谐板 Walleasear

基材:纯天然环保纤维复合声学棉 / 专利型材防氧化框体
饰面:饰面织物选择声学特性优良的混合布料
特点:密闭式框体包裹三层非对等密度复合基材,成型准封闭式宽频吸收声学空腔
环保:零排放符合国际E0环保标准
规格:H1800 * W300 * D50mm ≤2.8kg/m²
安装:防共震铝质易安装件

Base Material: Purely natural green fibre acoustic wool/Patented anti-oxidized frame
Finish: Well performed acoustic cloth
Acoustic structure: Three layers base material in different density are wrapped in the air tight frame, making it into an acoustic cavity for absorbing sound in broadband frequency
Eco-Friendly: Zero Formaldehyde emission; Up to E0 standard
Size: H1800 * W300 * D50mm ≤2.8kg/m2
Installation: Anti-resonance aluminium fixing system

适用于空间
Applicable to 15 – 30m²

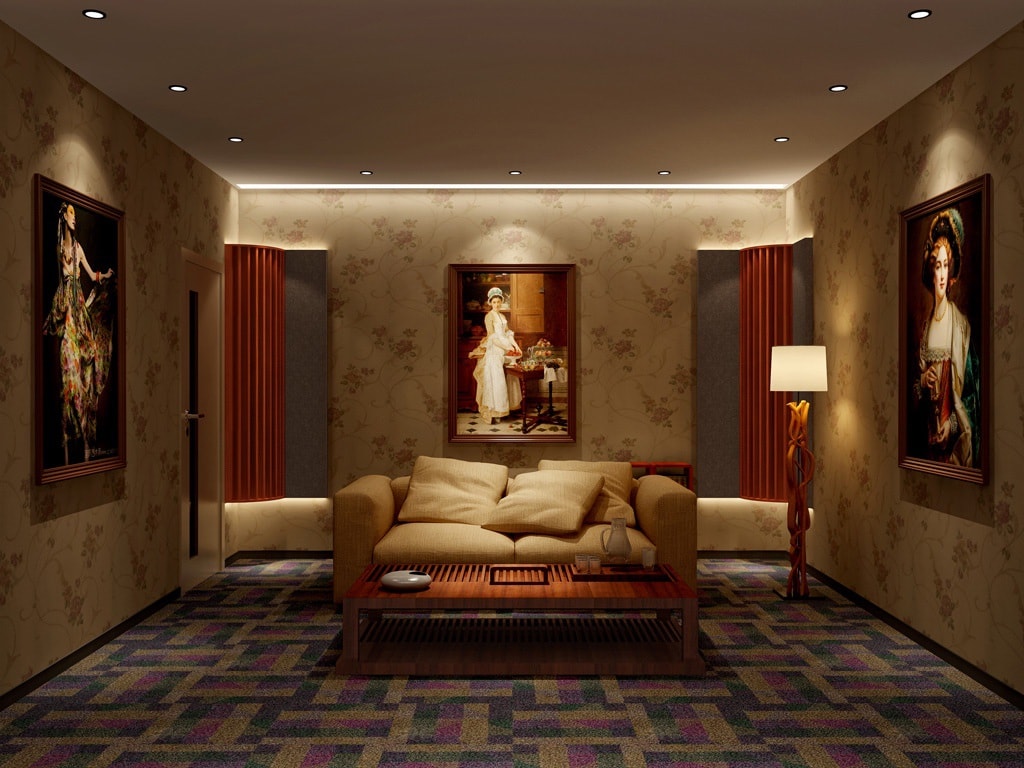

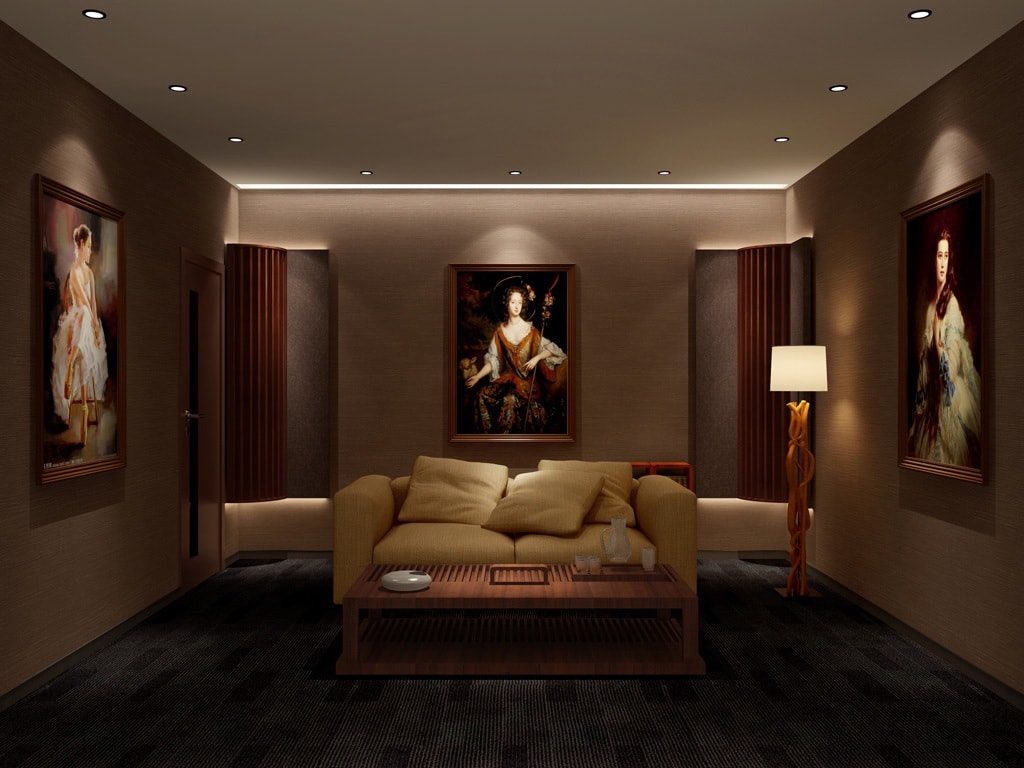

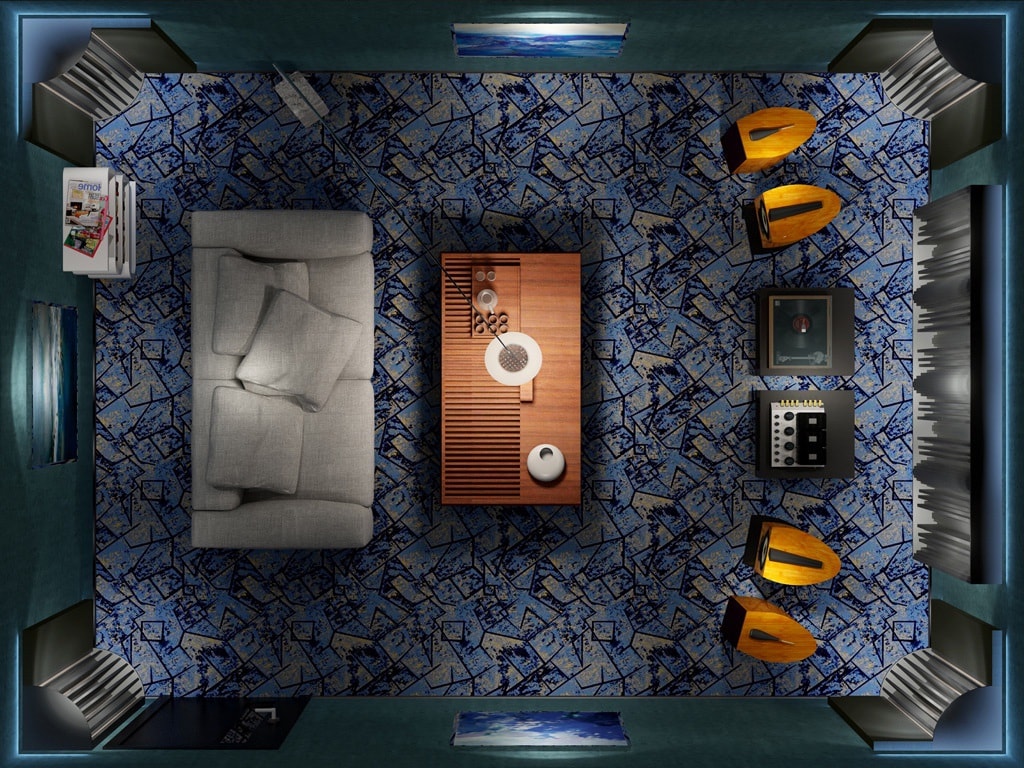

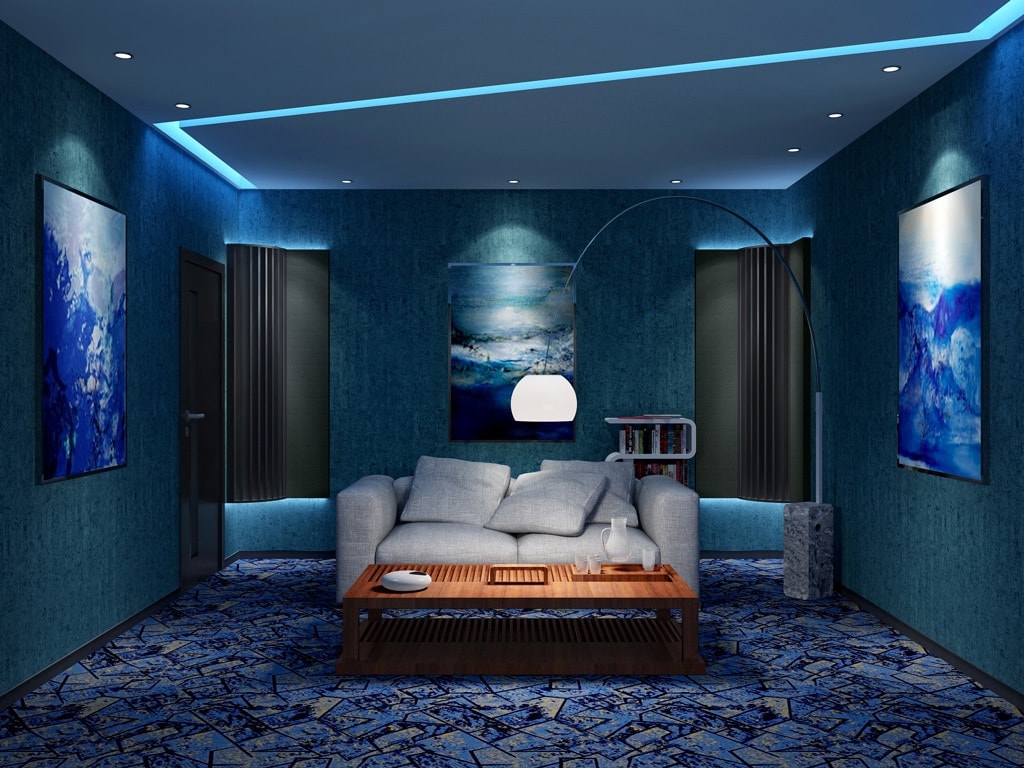

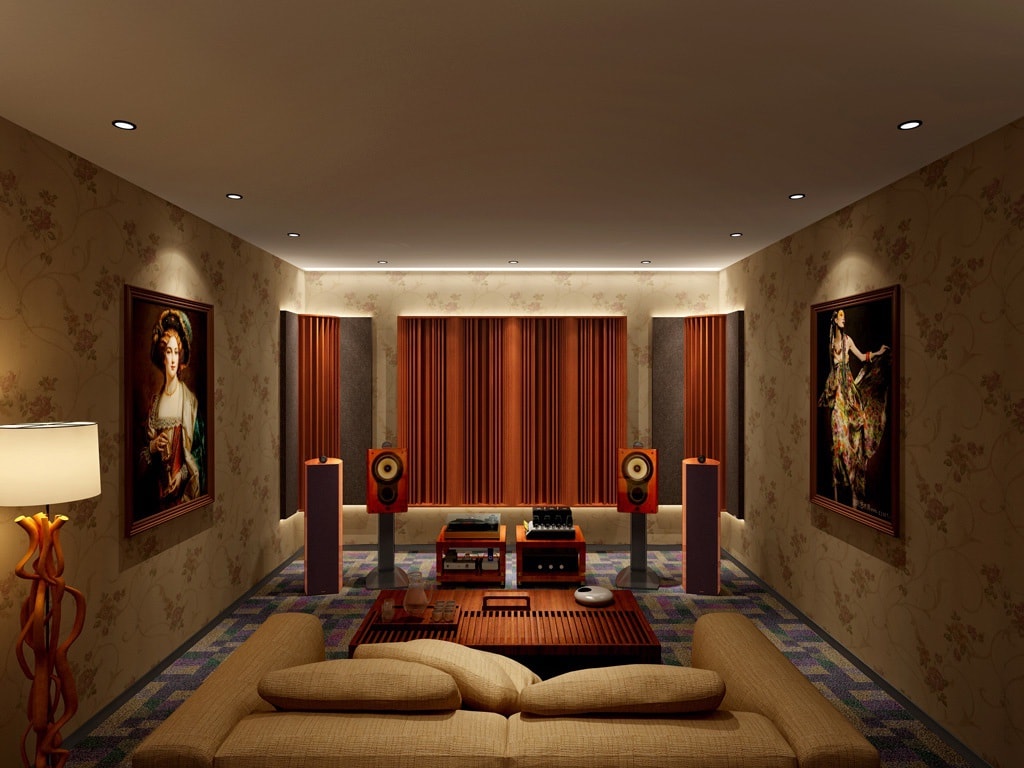

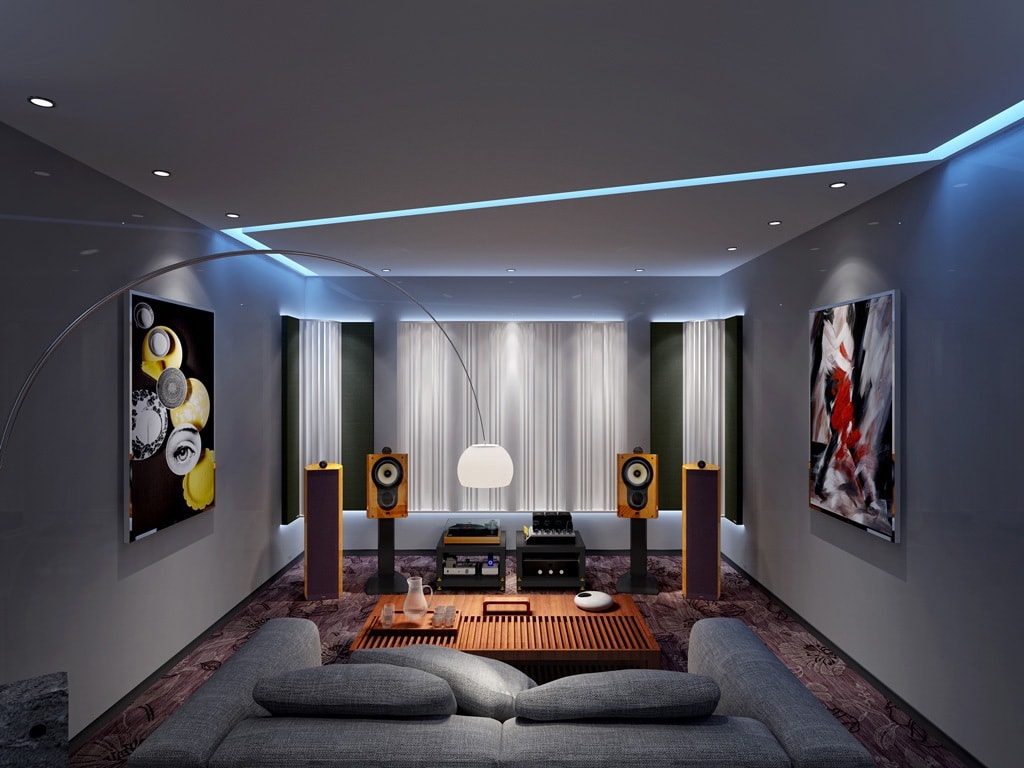

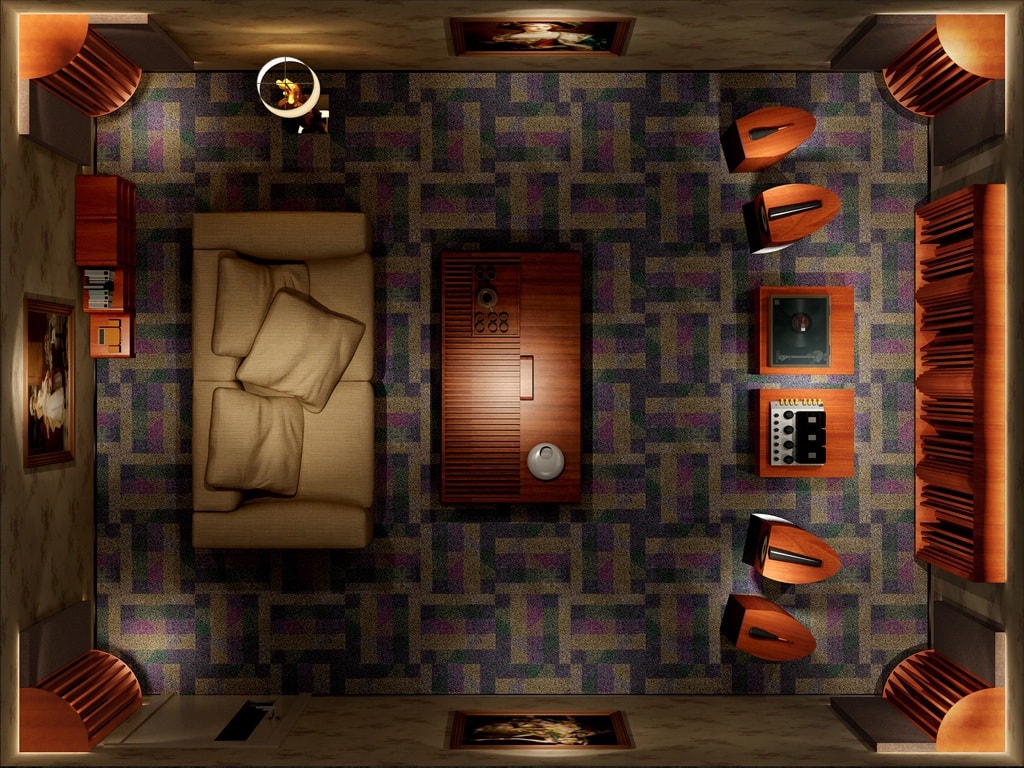

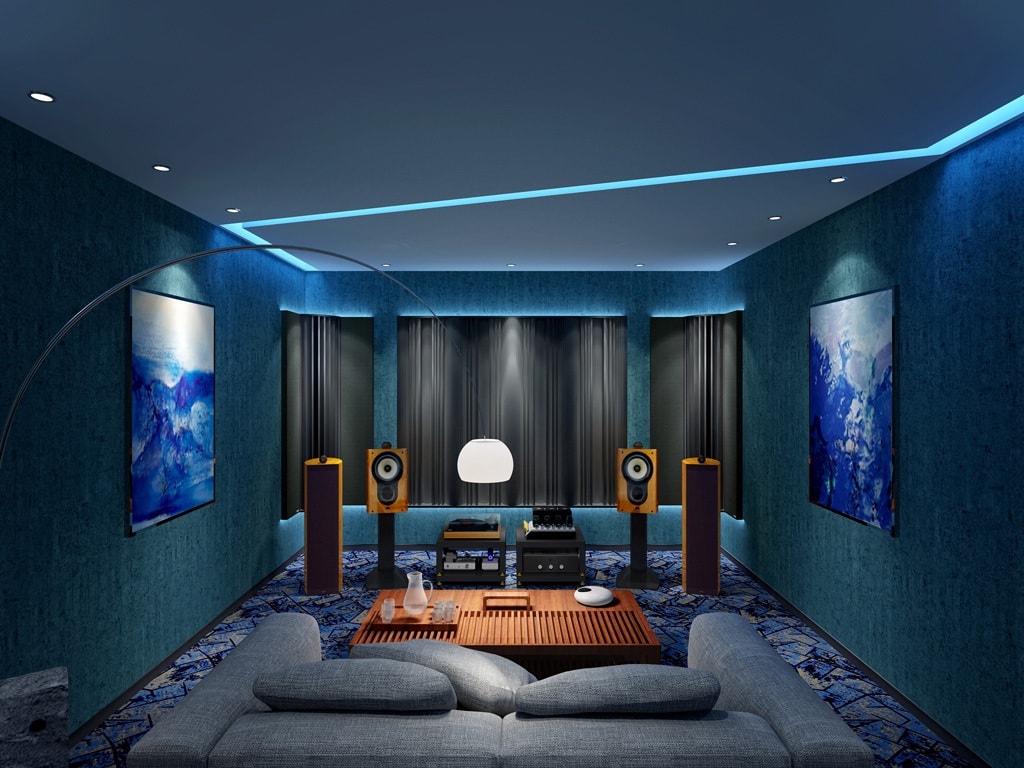

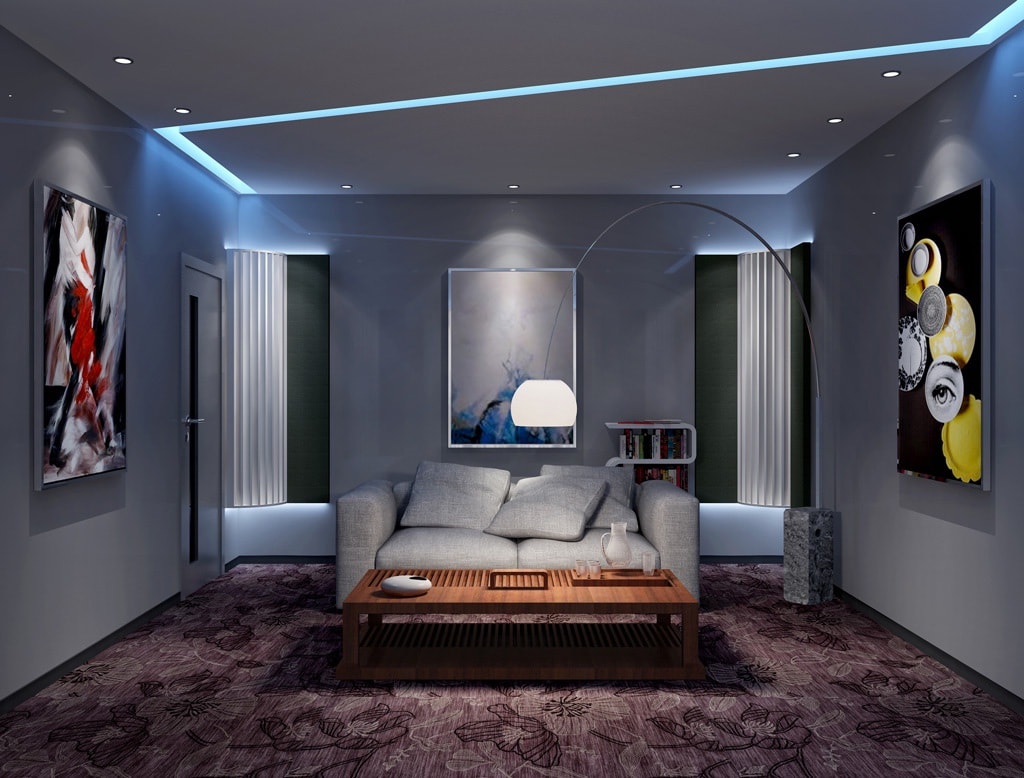

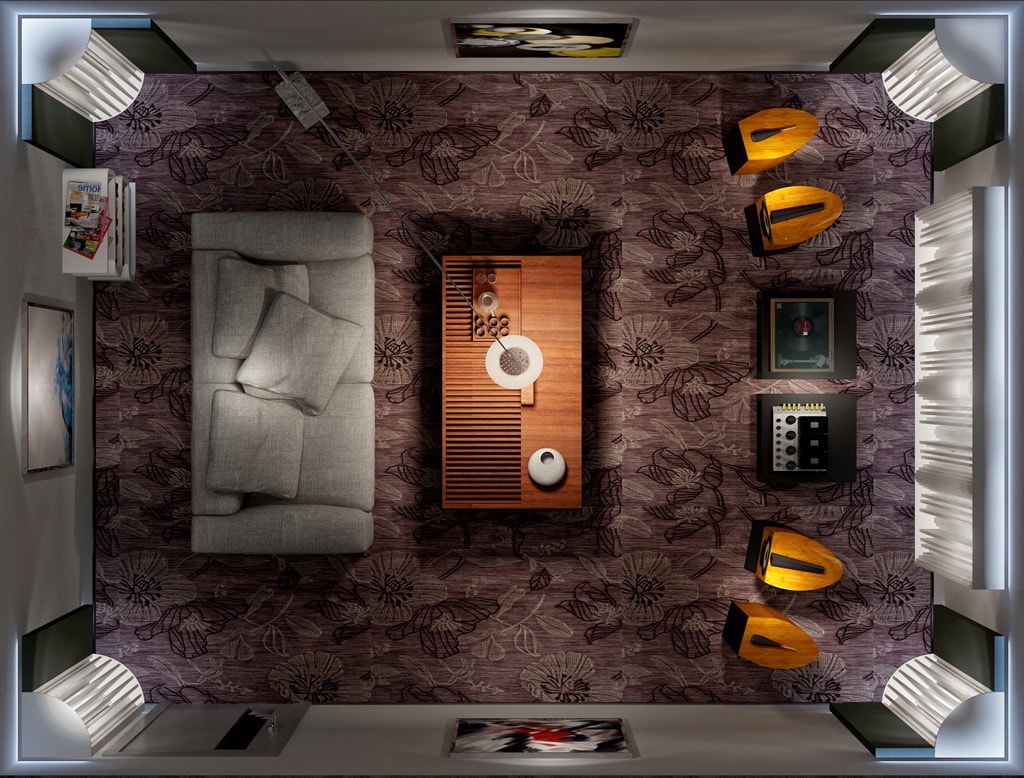

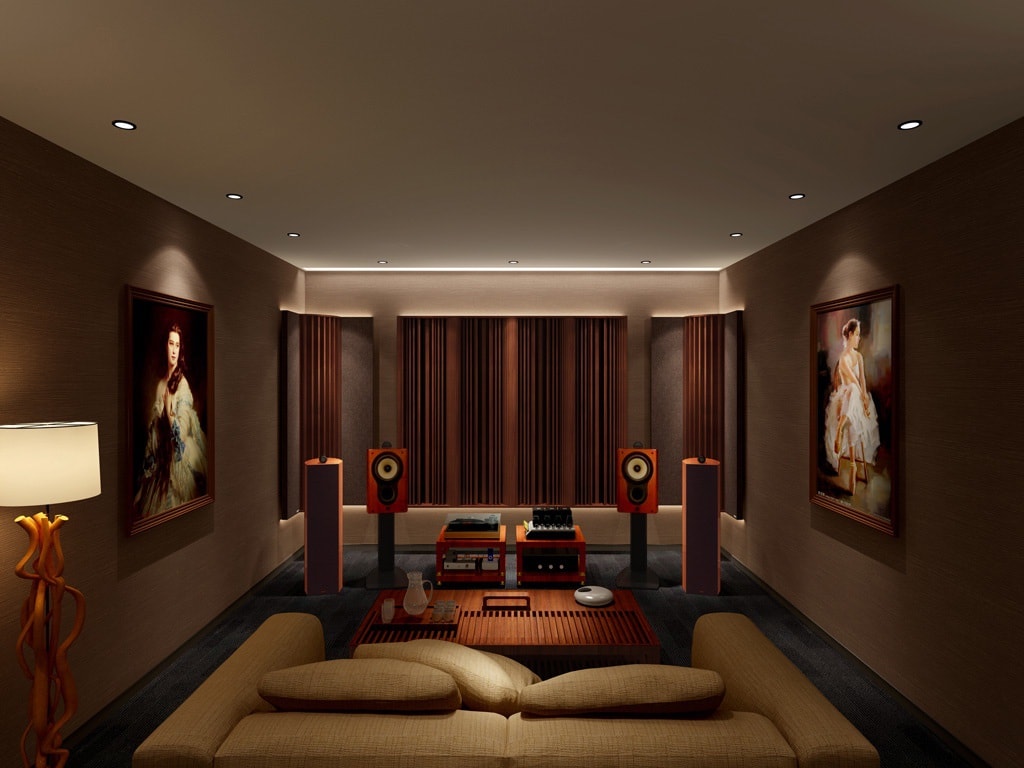

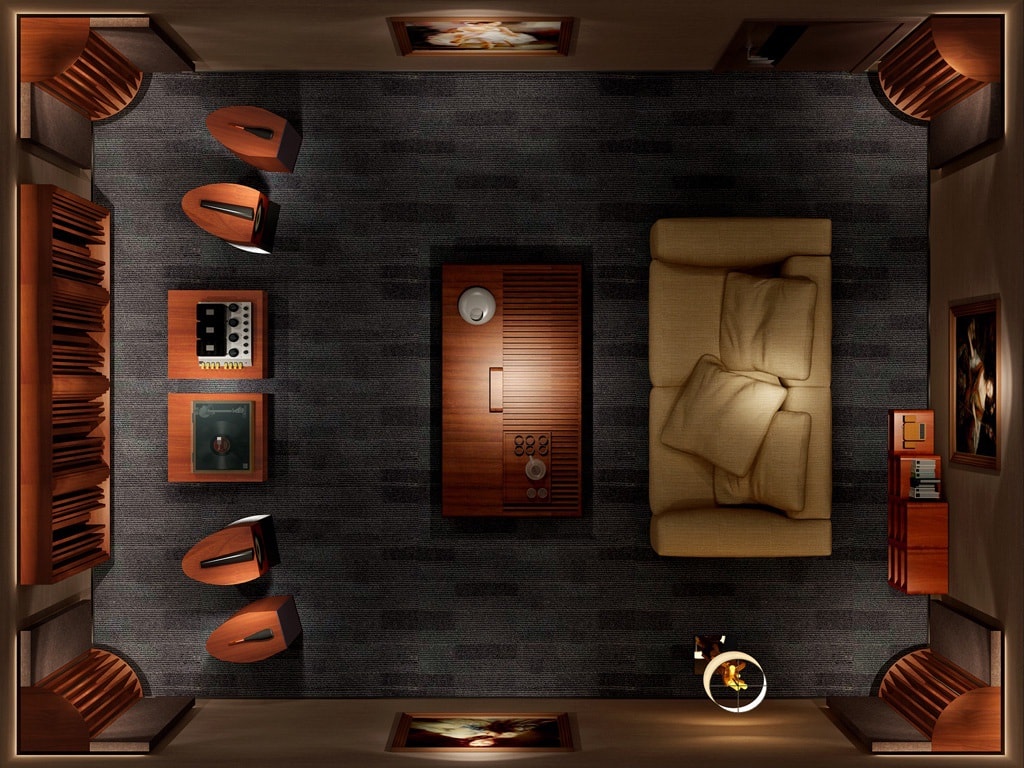

商品情景
Commodity Scene

No: 02080308
示意空间:长5000 x 宽4000 x 高2800mm
适用范围:15 – 30m²

No: 02080310
示意空间:长5000 x 宽4000 x 高2800mm
适用范围:15 – 30m²

No: 02080313
示意空间:长5000 x 宽4000 x 高2800mm
适用范围:15 – 30m²

No: 02080312
示意空间:长5000 x 宽4000 x 高2800mm
适用范围:15 – 30m²

方案参数
Specification

适用空间:
D4300~6400 * W3500~4700 * H 2600~2800 mm
应用功能:Hi-Fi / Hi-END
组合特性:正墙大面积QRD宽频扩散组合,容易形成驻波的4个墙角安置调谐板配合角位低频陷阱构建强大的余量吸收组合
声学功能:降低空间多维平衡反射声驻波,有效提升声音饱满度和细腻度
使用条件:已装修空间DIY组合安装

Room dimension:
D4300~6400 * W3500~4700 * H 2600~2800 mm
System: Hi-Fi / Hi-END
Combination: Front wall– Extensive QRD broad band diffusers combination, walleasears with bass traps at four corners to form a powerful excess frequencies absorption
Acoustic feature: To decrease balanced reflected standing wave, improving sound fullness and delicacy
Application: Decorated room, DIY installation

混响时间曲线分析图

郑 重 敬 告

本方案所涉产品及图片专利著作权归属广州声博士声学技术有限公司所有
未经授权篡改内容,擅自挪用、假冒仿制将追究法律责任
