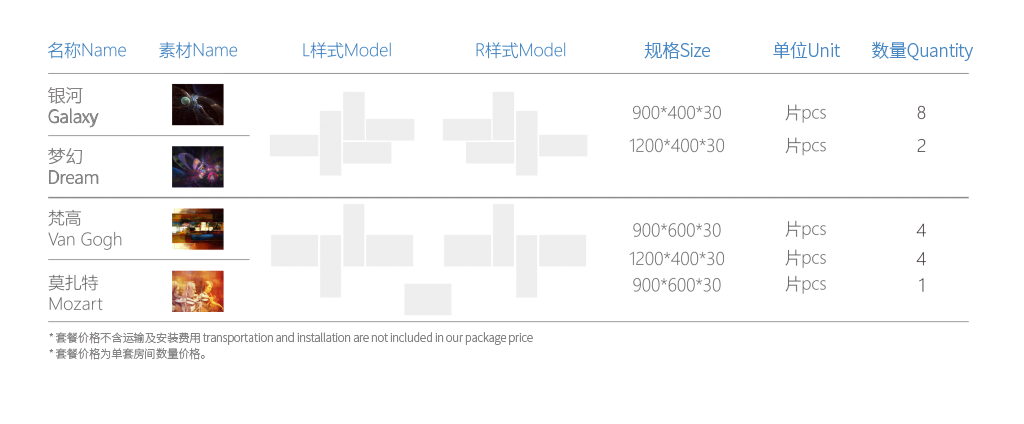

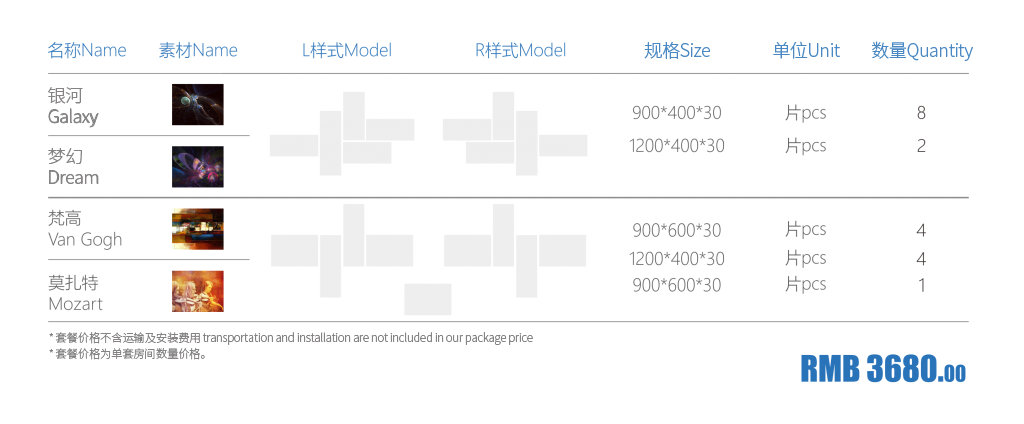

套餐清单

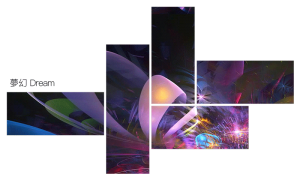

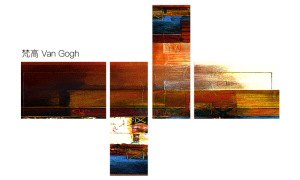

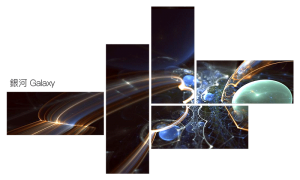

Imagine 幻想世界声学画
采用日本精工UV紫外线2D工业喷绘设备，美国UV环保墨水，无有害气体排放喷绘画面透气性优良，不影响声学指标，素材库多种类选择或自备素材融入影音空间、家居、商务、休闲娱乐等环境
Imagine 声学美声的完美结合
基材：纯天然环保纤维复合声学棉 / 专利模具型材铝框
饰面：亚麻双密度复合声学布
特点：密闭式框体包裹三层非对等密度复合基材，准封闭式宽频吸收声学空腔
环保：零排放符合国际E0环保标准
规格：尺寸参考套装产品清单
安装：防共震易安装件
Equipment: Seiko UV ultraviolet 2D spray painting machine imported from Japan. Excellent air permeability does not affect acoustic function.
USA UV Eco-friendly ink without harmful gas emission
Diversified raw materials for customers’ choices; Those offered by customers are acceptable It’s a perfect integration when are applied to homes, offices and entertaining spaces.
Imagine, the Perfect combination between acoustic and sounds.
Material: pure natural green cotton fibre composite acoustic / patent mould aluminium frame profiles
Finishes: linen double density composite acoustic cloth
Environmental protection: zero emissions in line with international environmental standards E0
Installation: Anti-resonance aluminium fixing system

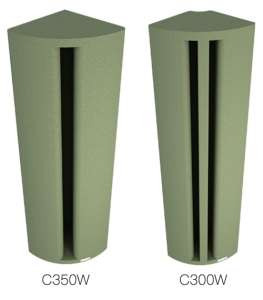

C350W/C300W 角位低频陷阱 Corner basstrap
R350W/R300W 圆柱低频陷阱 Cylinder basstrap
基材：Polymer 高分子聚合物
饰面：E0环保水性颗粒面漆
特点：采用Polymer 高分子聚合物浇注成型，结合高强度无机涂层成就了低自重高强度井体，Polymer 高分子聚合物材质有着良好的低频吸收特性，又大幅降低产品自重和克服传统材质缺陷。采纳了智慧的开放式共振箱体结构，300/350两款产品搭配组 合有效捕捉当100-250赫兹余量低频，轻松解决过度低频引起的大部分问题。
规格：
C350W: H1200 * W350 * D350mm ≤3.2Kg/个
C300W: H1200 * W300 * D300mm ≤2.8Kg/个
R350W: Φ300*1200mm ≤3.5Kg/个
R300W: Φ300*1200mm ≤2.8Kg/个
Base Material: Polymer,chemical compound with large molecules
Finish: E0 ECO water based paint
Features: Combining high tensile inorganic coating, they are formed by pouring Polymer materials which is with good low absorption character, decreasing weight and overcome traditional drawbacks. Adopting the wise open resonance box model, it is the one of effective approaches to capture 100-250Hz, taming most of problems caused by excess of low frequencies.
Size:
C350W: H1200 * W350 * D350mm ≤3.2Kg/pcs
C300W: H1200 * W300 * D300mm ≤2.8Kg/pcs
R350W: Φ300*1200mm ≤3.5Kg/pcs
R300W: Φ300*1200mm ≤2.8Kg/pcs
适用于空间
Applicable to 15 – 30m²

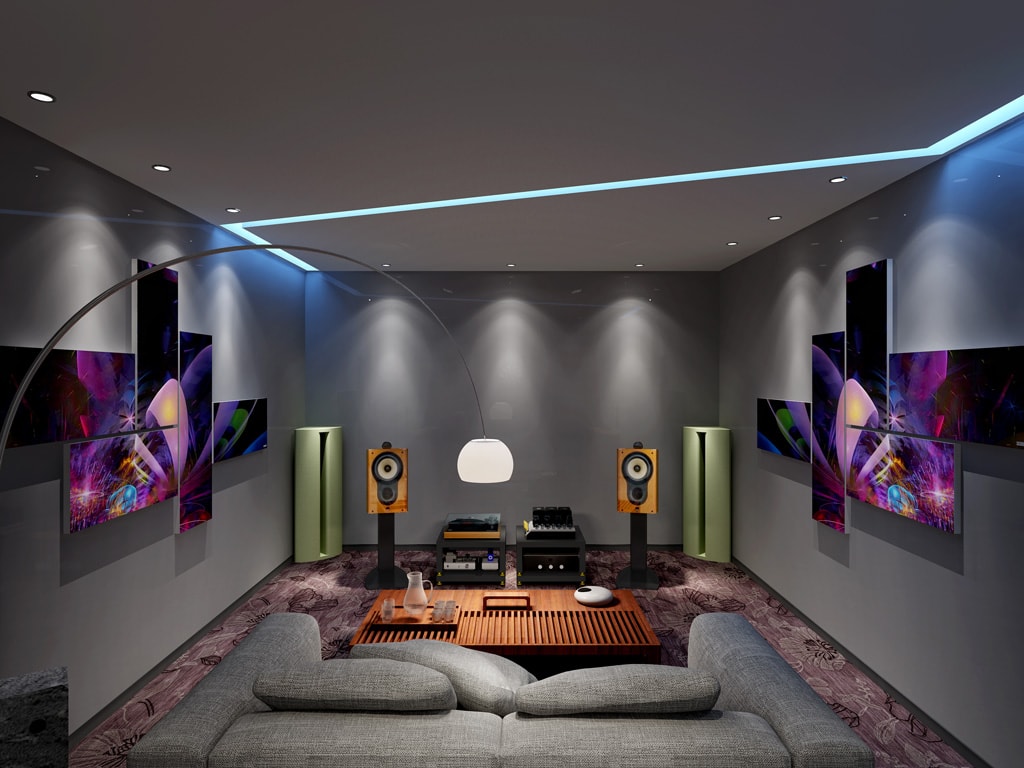

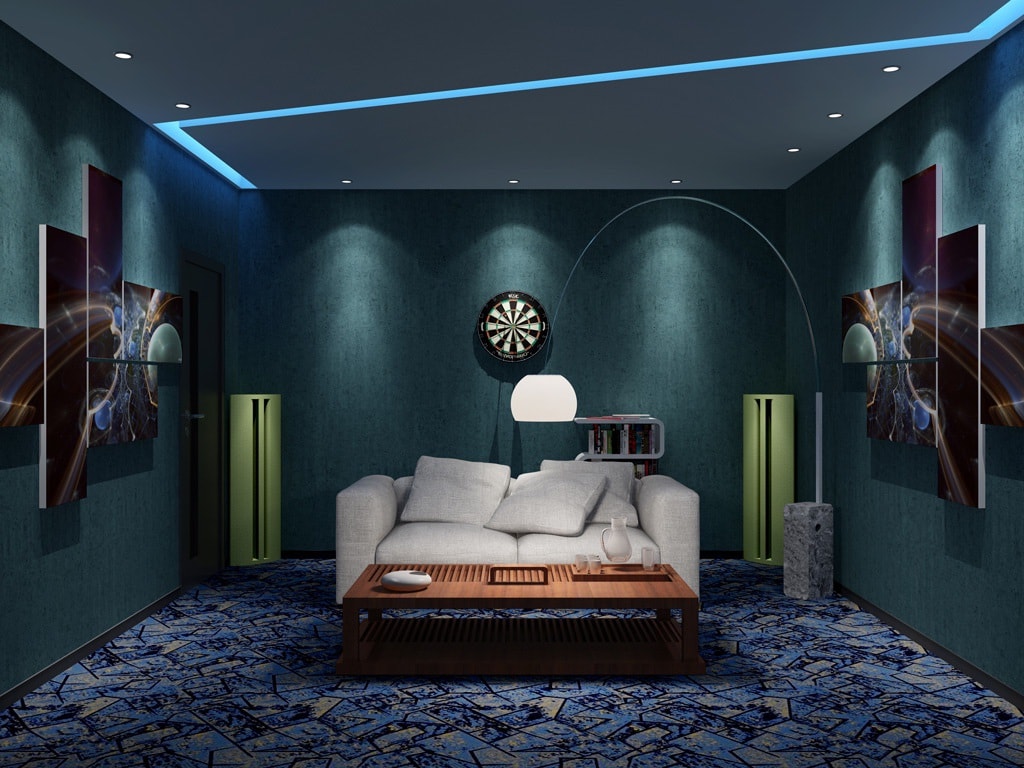

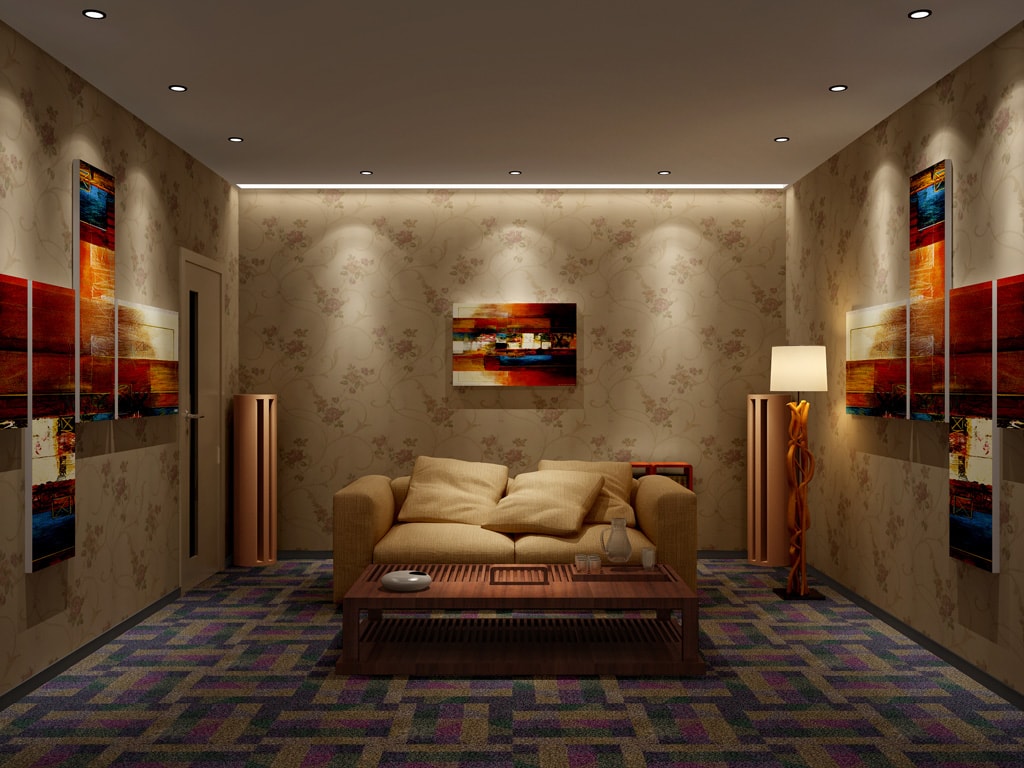

商品情景
Commodity Scene

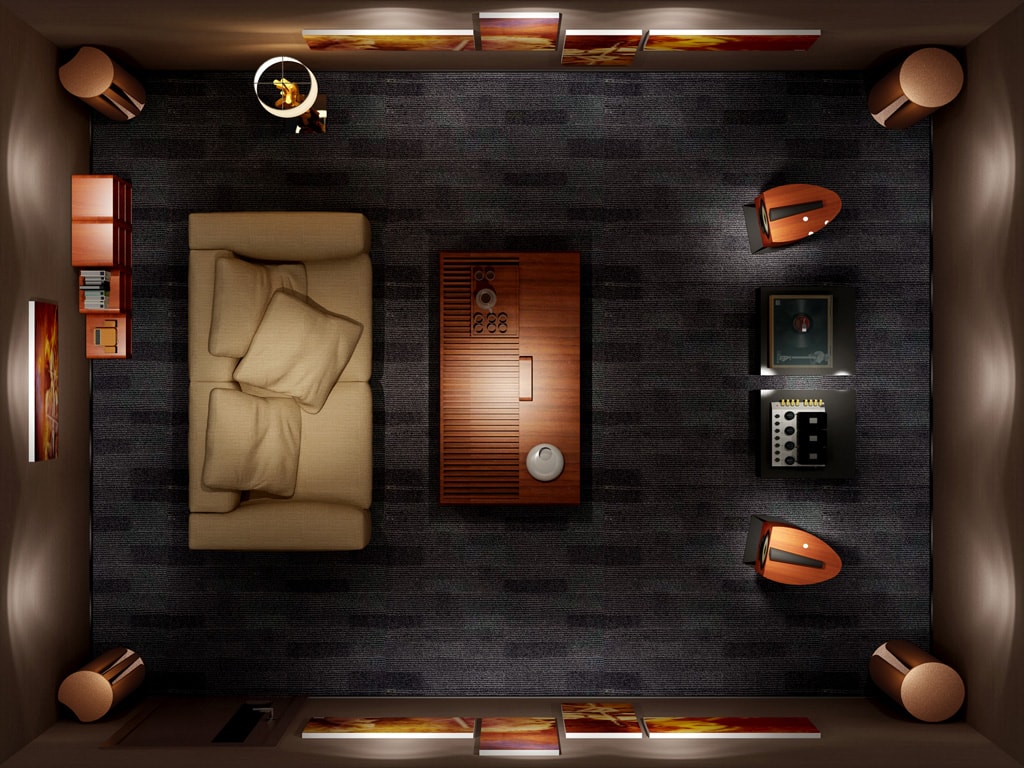

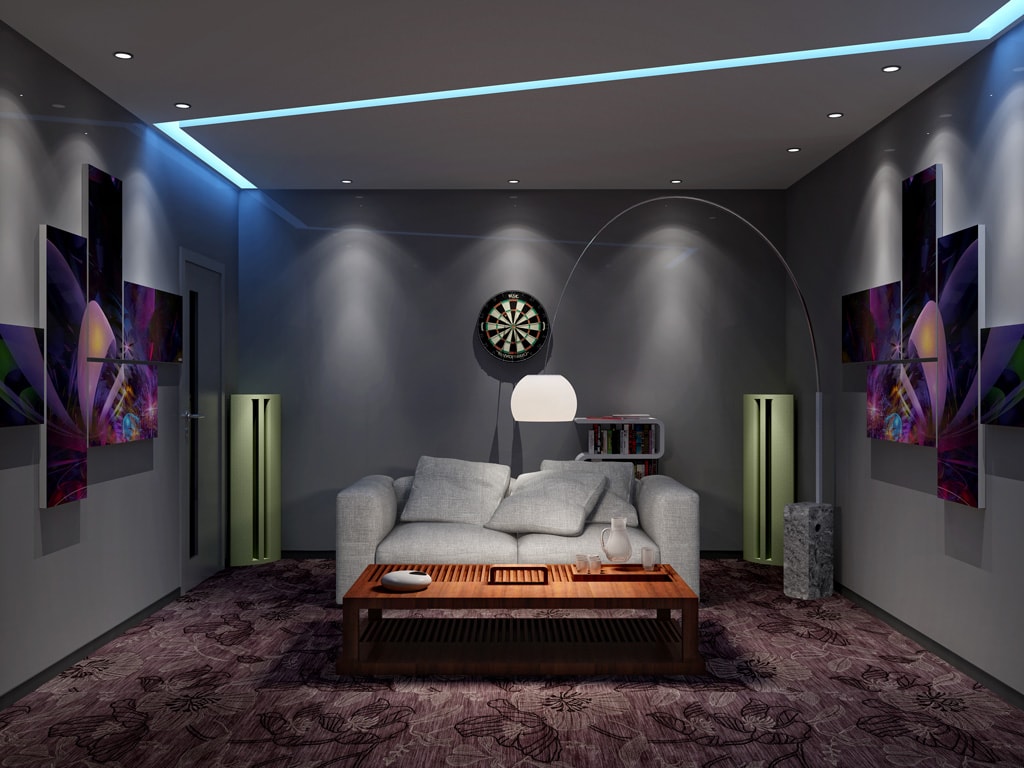

No: 02020314
示意空间：长5000 x 宽4000 x 高2800mm
适用范围：15 – 30m²

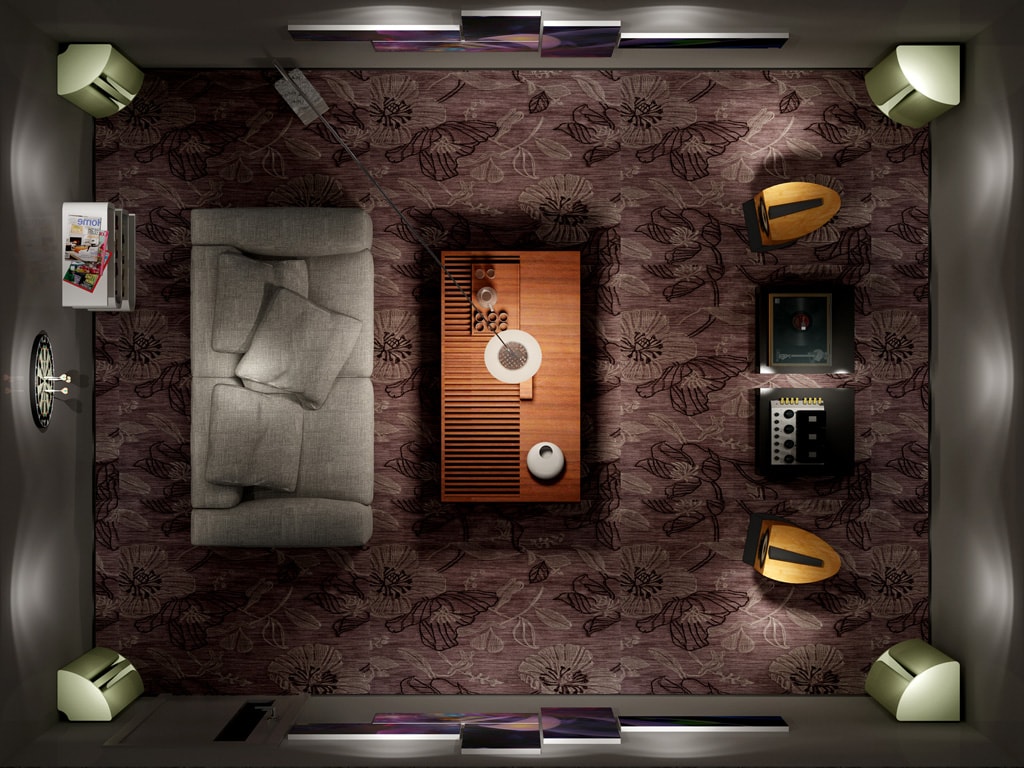

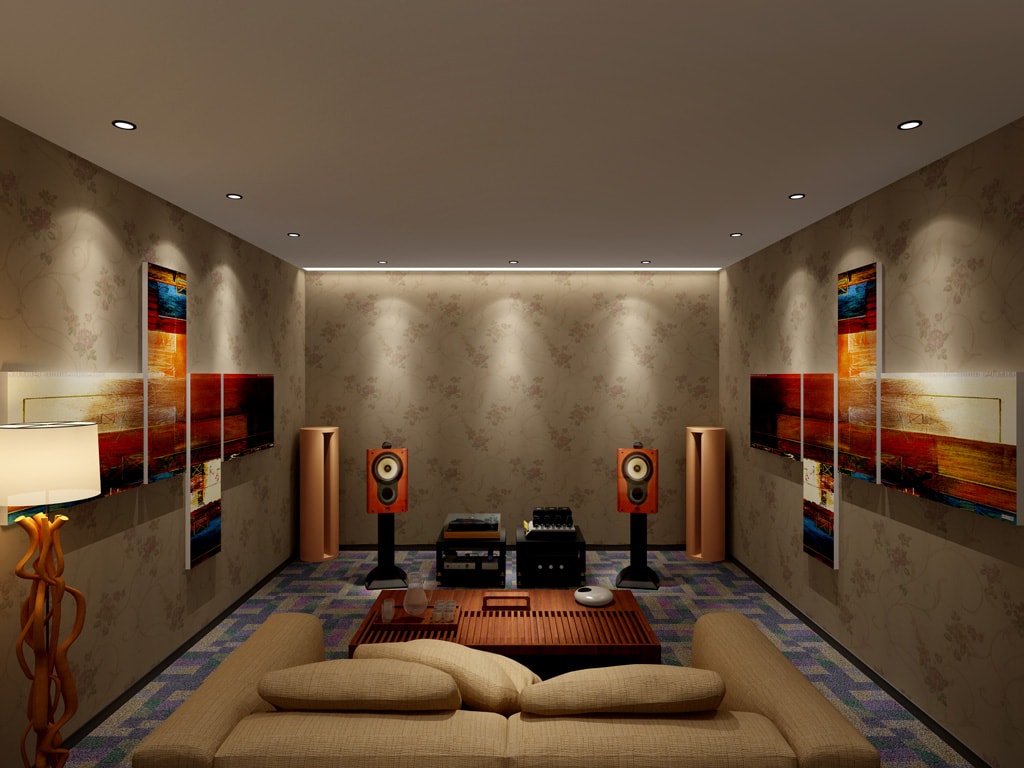

No: 02020315
示意空间：长5000 x 宽4000 x 高2800mm
适用范围：15 – 30m²

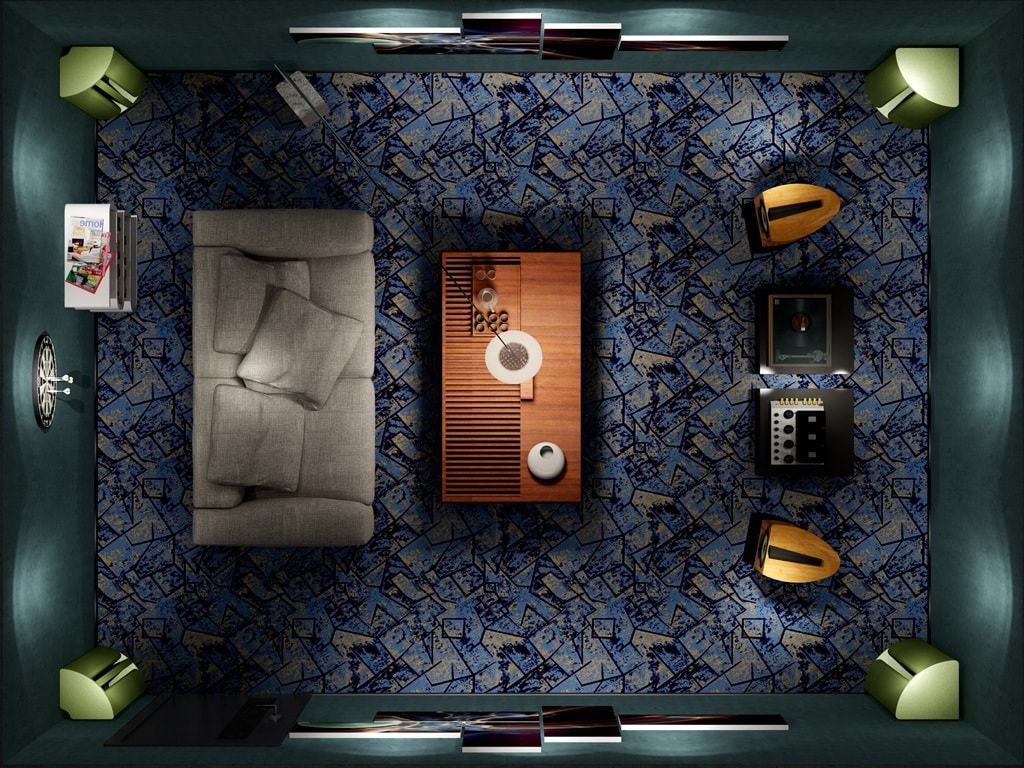

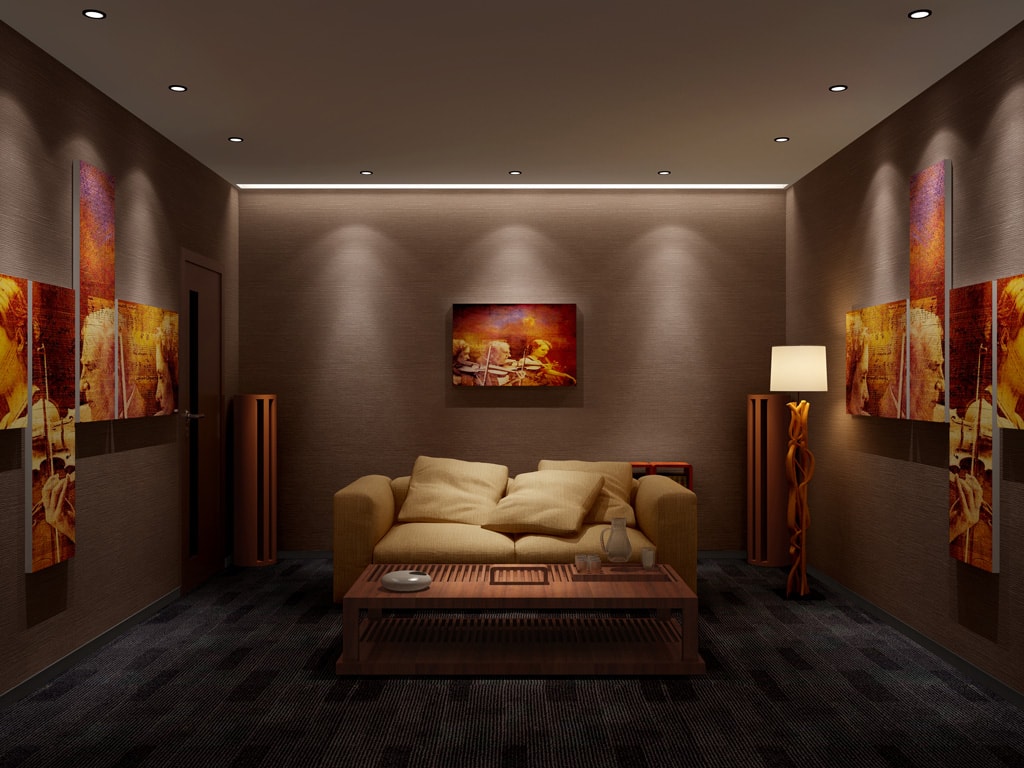

No: 02030316
示意空间：长5000 x 宽4000 x 高2800mm
适用范围：15 – 30m²

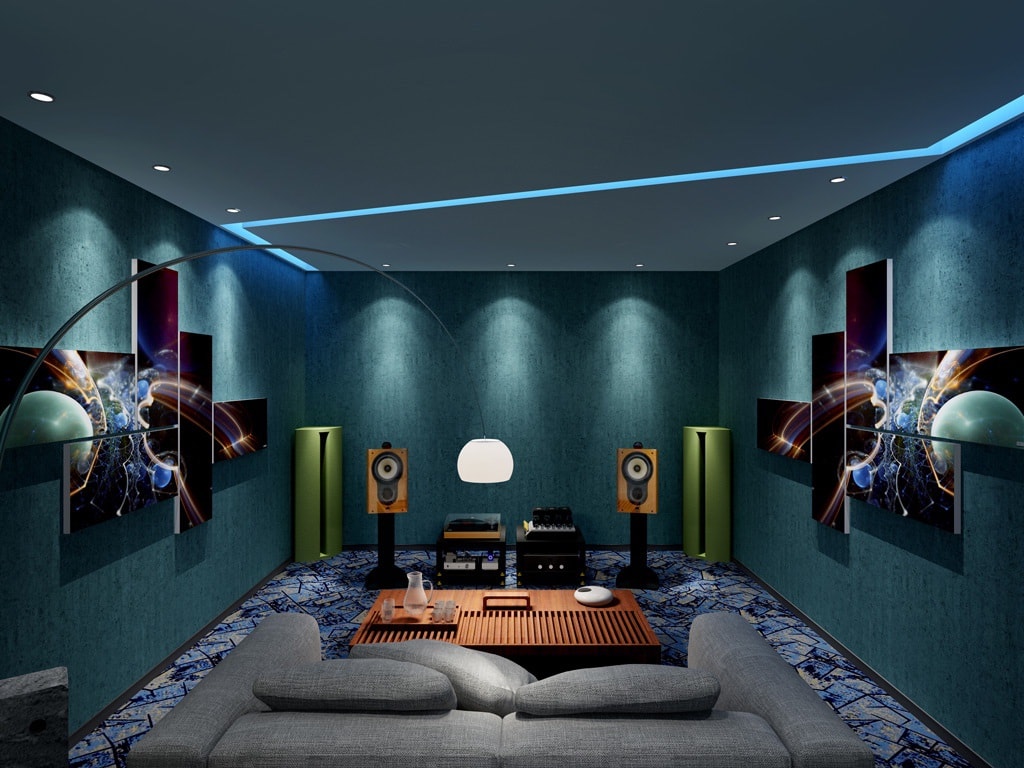

No: 02030317
示意空间：长5000 x 宽4000 x 高2800mm
适用范围：15 – 30m²

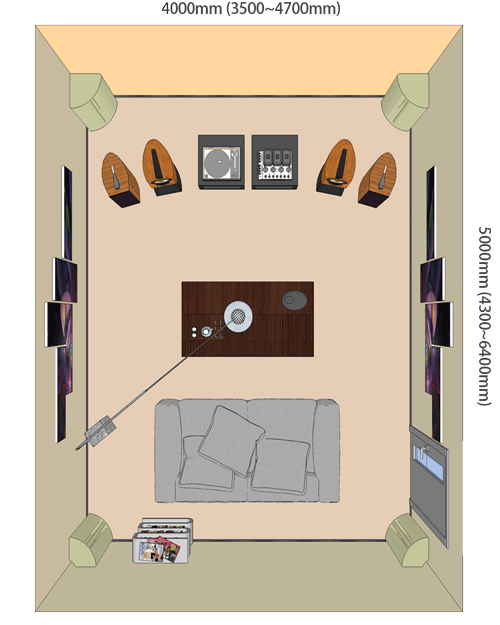

方案参数
Specification
适用空间：
D4300~6400 * W3500~4700 * H 2600~2800 mm
应用功能：Hi-Fi / Hi-END
组合特性：R/L墙身全频吸收，容易形成驻波的4个墙角安放移动式角位低频陷阱

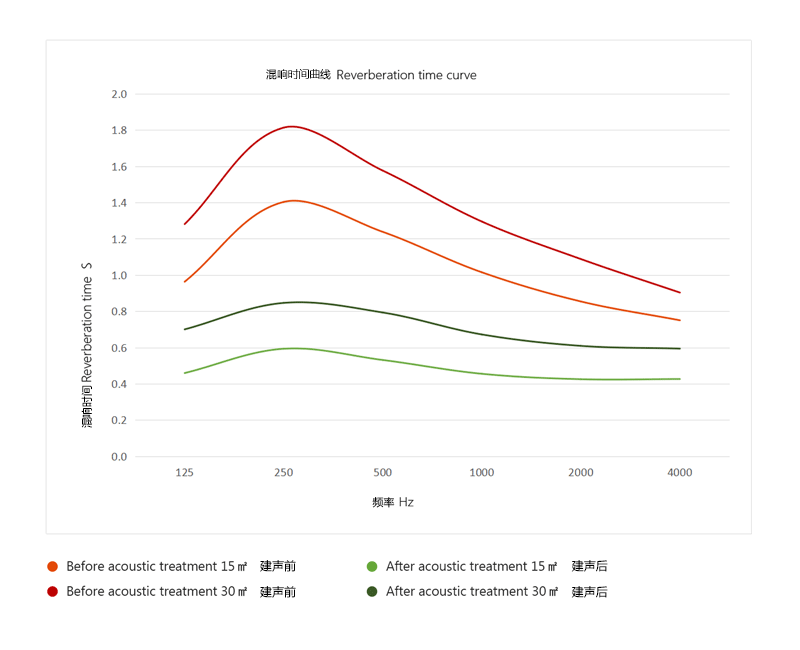

声学功能：降低空间多维平衡反射声驻波，有效提升声音饱满度和细腻度
使用条件：已装修空间DIY组合安装
Room dimension:
D4300~6400 * W3500~4700 * H 2600~2800 mm
System: Hi-Fi / Hi-END
Combination: R/L absorbs all band of frequencies. Portable bass traps at four corners which standing wave mostly present
Acoustic feature: To decrease balanced reflected standing wave, improving sound fullness and delicacy
Application: Decorated room, DIY installation
郑 重 敬 告
本方案所涉产品及图片专利著作权归属广州声博士声学技术有限公司所有
未经授权篡改内容，擅自挪用、假冒仿制将追究法律责任
